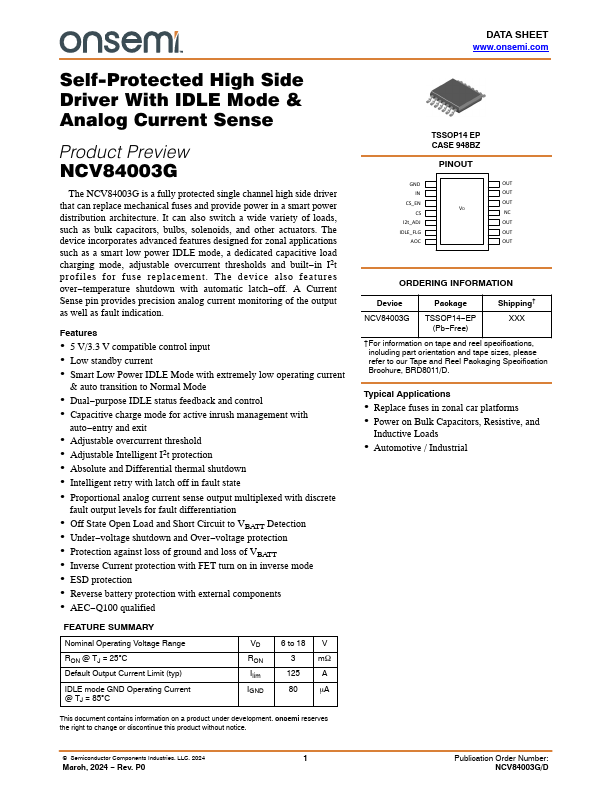

NCV84003G
features designed for zonal applications such as a smart low power IDLE mode, a dedicated capacitive load charging mode, adjustable overcurrent thresholds and built- in I2t profiles for fuse replacement. The device also features over- temperature shutdown with automatic latch- off. A Current Sense pin provides precision analog current monitoring of the output as well as fault indication.
Features
- 5 V/3.3 V patible control input
- Low standby current
- Smart Low Power IDLE Mode with extremely low operating current
& auto transition to Normal Mode
- Dual- purpose IDLE status feedback and control
- Capacitive charge mode for active inrush management with auto- entry and exit
- Adjustable overcurrent threshold
- Adjustable Intelligent I2t protection
- Absolute and Differential thermal shutdown
- Intelligent retry with latch off in fault state
- Proportional analog current sense output multiplexed with discrete fault output levels for fault differentiation
- Off State Open Load and Short...
