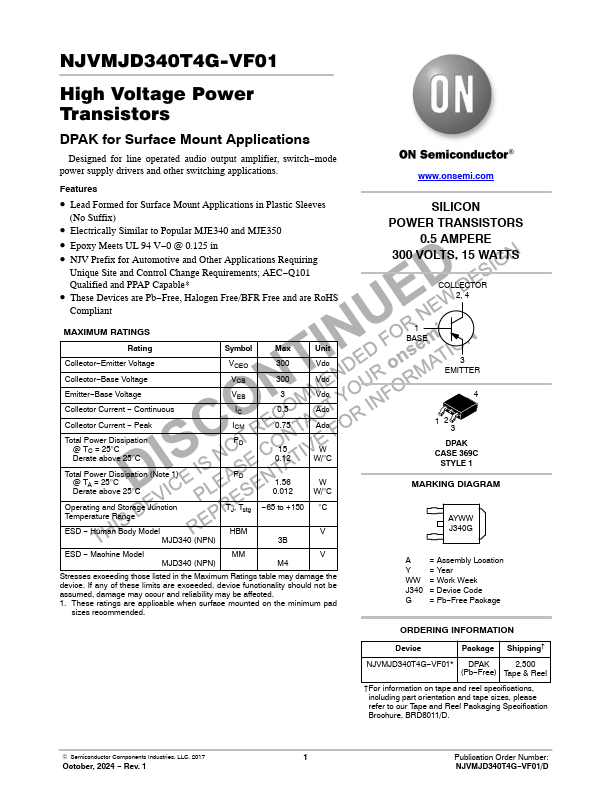

Datasheet Summary
High Voltage Power Transistors
DPAK for Surface Mount Applications
Designed for line operated audio output amplifier, switch- mode power supply drivers and other switching applications.
Features
- Lead Formed for Surface Mount Applications in Plastic Sleeves
(No Suffix)
- Electrically Similar to Popular MJE340 and MJE350
- Epoxy Meets UL 94 V- 0 @ 0.125 in
- NJV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC- Q101 Qualified and PPAP Capable-
- These Devices are Pb- Free, Halogen Free/BFR Free and are RoHS pliant
MAXIMUM RATINGS
Rating
Symbol
Max
Unit
Collector- Emitter Voltage Collector- Base Voltage Emitter-...
