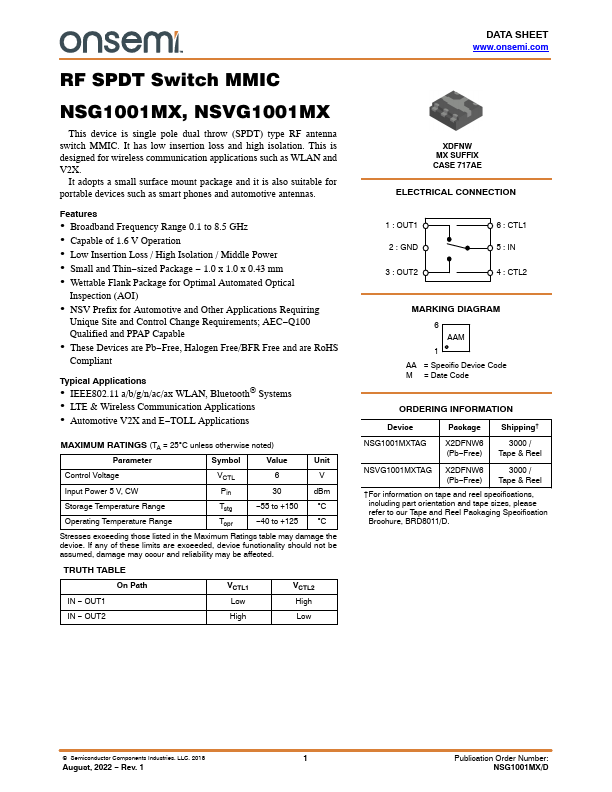

NSG1001MX
Features
- Broadband Frequency Range 0.1 to 8.5 GHz
- Capable of 1.6 V Operation
- Low Insertion Loss / High Isolation / Middle Power
- Small and Thin- sized Package
- 1.0 x 1.0 x 0.43 mm
- Wettable Flank Package for Optimal Automated Optical
Inspection (AOI)
- NSV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC- Q100 Qualified and PPAP Capable
- These Devices are Pb- Free, Halogen Free/BFR Free and are Ro HS pliant
Typical Applications
- IEEE802.11 a/b/g/n/ac/ax WLAN, Bluetooth Systems
- LTE & Wireless munication Applications
- Automotive V2X and E- TOLL Applications
MAXIMUM RATINGS (TA = 25C unless otherwise noted)
Parameter
Symbol
Value
Unit
Control Voltage
VCTL
Input Power 5 V, CW
Pin
30 d Bm
Storage Temperature Range
Tstg
- 55 to +150 C
Operating Temperature Range
Topr
- 40 to +125 C
Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded,...
