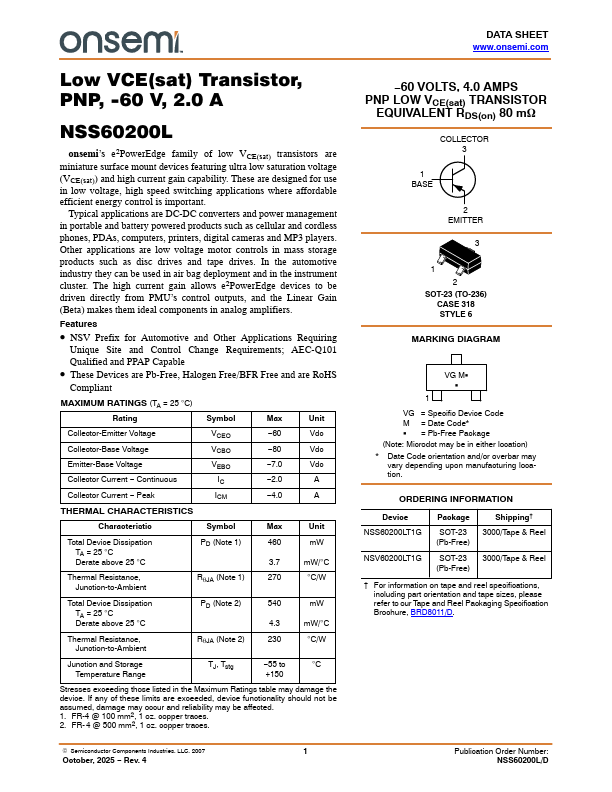

NSS60200L
Features
- NSV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable
- These Devices are Pb-Free, Halogen Free/BFR Free and are Ro HS pliant
MAXIMUM RATINGS (TA = 25 °C)
Rating
Symbol
Max
Unit
Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current
- Continuous Collector Current
- Peak THERMAL CHARACTERISTICS
VCEO VCBO VEBO
IC ICM
- 60
Vdc
- 80
Vdc
- 7.0
Vdc
- 2.0
- 4.0
Characteristic
Symbol
Max
Unit
Total Device Dissipation
TA = 25 °C Derate above 25 °C
PD (Note 1)
460 m W
3.7 m W/°C
Thermal Resistance, Junction-to-Ambient
Rq JA (Note 1)
°C/W
Total Device Dissipation
TA = 25 °C Derate above 25 °C
PD (Note...
