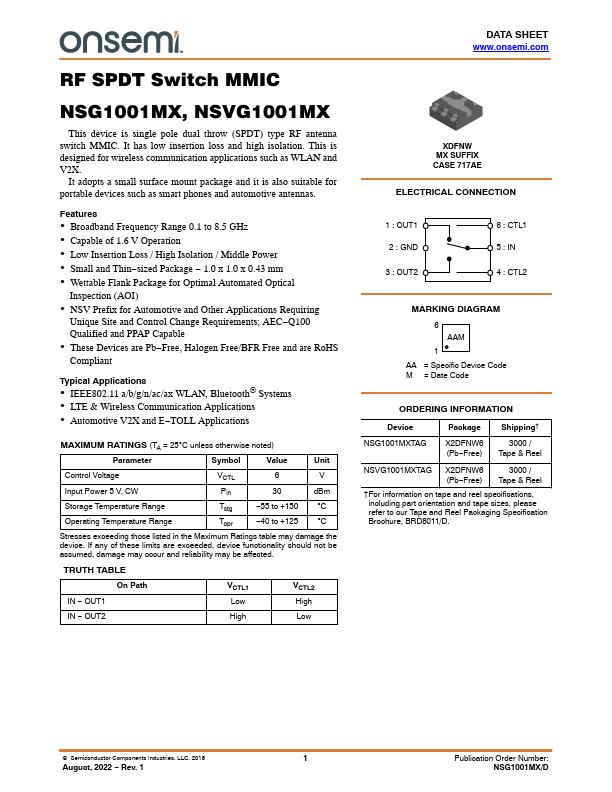

FEATURES

● Broadband Frequency Range 0.1 to 8.5 GHz
● Capable of 1.6 V Operation
● Low Insertion Loss / High Isolation / Middle Power
● Small and Thin−sized Package − 1.0 x 1.0 x 0.43 mm
● Wettable Flank Package for Optimal Automated Optical Inspection (AOI)
● NSV Prefix for Automotive and Other

APPLICATIONS

Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
● These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant Typical

APPLICATIONS

● IEEE802.11 a/b/g/n/ac/ax WLAN, Bluetooth Systems
● LTE & Wireless Communication

APPLICATIONS

● Automotive V2X and E−TOLL

APPLICATIONS

MAXIMUM RATINGS

(TA = 25C unless otherwise noted) Parameter Symbol Value Unit Control Voltage VCTL 6 V Input Power 5 V, CW Pin 30 dBm Storage Temperature Range Tstg −55 to +150 C Operating Temperature Range Topr −40 to +125 C Stresses exceeding those listed in the

MAXIMUM RATINGS

table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.
