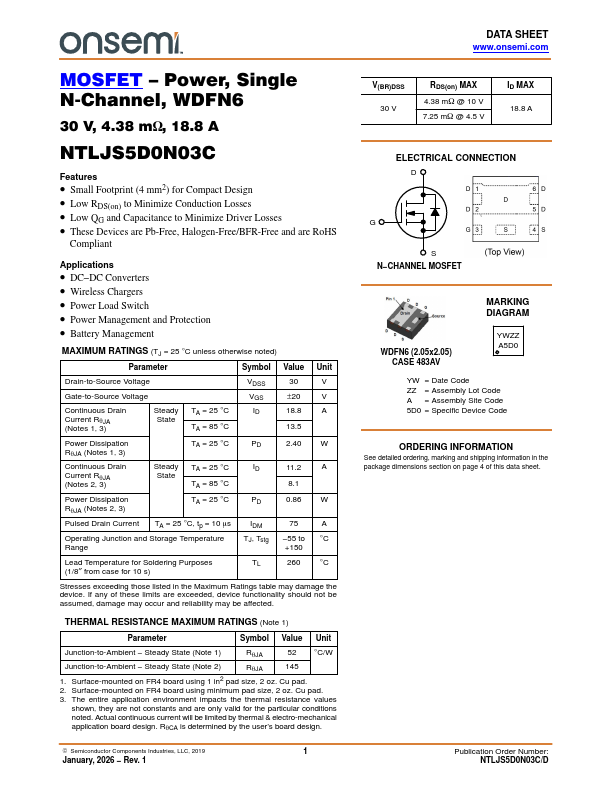

NTLJS5D0N03C
NTLJS5D0N03C is N-Channel Power MOSFET manufactured by onsemi.
Features
- Small Footprint (4 mm2) for pact Design
- Low RDS(on) to Minimize Conduction Losses
- Low QG and Capacitance to Minimize Driver Losses
- These Devices are Pb-Free, Halogen-Free/BFR-Free and are Ro HS pliant
Applications
- DC- DC Converters
- Wireless Chargers
- Power Load Switch
- Power Management and Protection
- Battery Management
MAXIMUM RATINGS (TJ = 25 °C unless otherwise noted)
Parameter
Symbol Value Unit
Drain-to-Source Voltage
VDSS
Gate-to-Source Voltage
±20
Continuous Drain
Current Rq JA (Notes 1, 3)
Steady TA = 25 °C
State
TA = 85 °C
18.8 A 13.5
Power Dissipation Rq JA (Notes 1, 3)
Continuous Drain Current Rq JA (Notes 2, 3)
TA = 25 °C
Steady TA = 25 °C
State
TA = 85 °C
2.40 W
11.2 A 8.1
Power Dissipation Rq JA (Notes 2, 3)
TA = 25...
