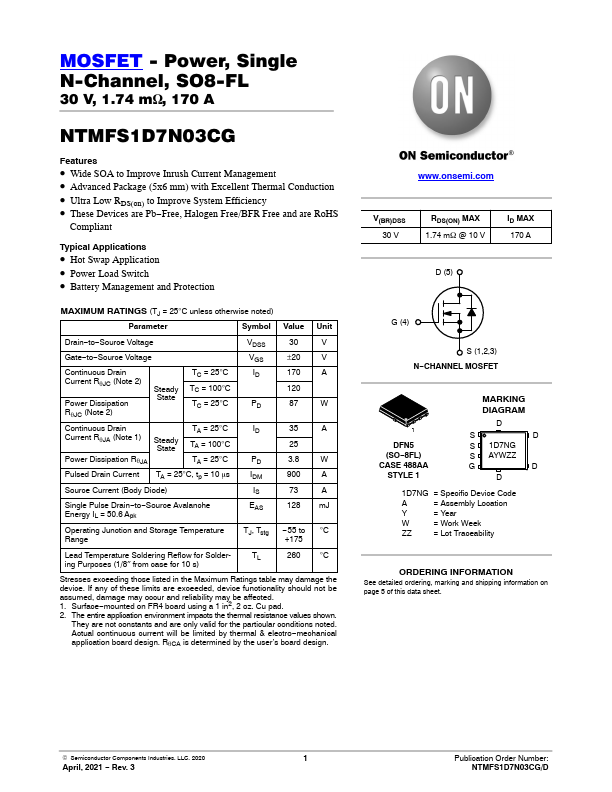

NTMFS1D7N03CG
Features
- Wide SOA to Improve Inrush Current Management
- Advanced Package (5x6 mm) with Excellent Thermal Conduction
- Ultra Low RDS(on) to Improve System Efficiency
- These Devices are Pb- Free, Halogen Free/BFR Free and are Ro HS pliant
Typical Applications
- Hot Swap Application
- Power Load Switch
- Battery Management and Protection
MAXIMUM RATINGS (TJ = 25°C unless otherwise noted)
Parameter
Symbol Value Unit
Drain- to- Source Voltage
VDSS
Gate- to- Source Voltage
±20
Continuous Drain
TC = 25°C
Current Rq JC (Note 2) Steady TC = 100°C
Power Dissipation
State TC = 25°C
Rq JC (Note 2)
Continuous Drain
TA = 25°C
Current Rq JA (Note 1)
Steady State
TA = 100°C
Power Dissipation Rq JA
TA = 25°C
Pulsed Drain Current TA = 25°C, tp = 10 ms
Source Current (Body...
