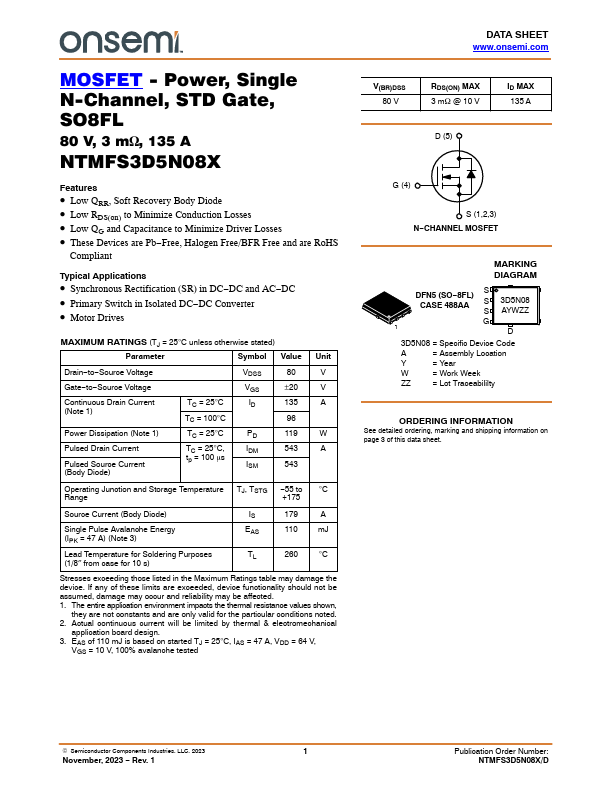

NTMFS3D5N08X
Features
- Low QRR, Soft Recovery Body Diode
- Low RDS(on) to Minimize Conduction Losses
- Low QG and Capacitance to Minimize Driver Losses
- These Devices are Pb- Free, Halogen Free/BFR Free and are Ro HS pliant
Typical Applications
- Synchronous Rectification (SR) in DC- DC and AC- DC
- Primary Switch in Isolated DC- DC Converter
- Motor Drives
MAXIMUM RATINGS (TJ = 25°C unless otherwise stated)
Parameter
Symbol Value Unit
Drain- to- Source Voltage Gate- to- Source Voltage Continuous Drain Current (Note 1)
Power Dissipation (Note 1) Pulsed Drain Current Pulsed Source Current (Body Diode)
TC = 25°C TC = 100°C TC = 25°C TC = 25°C, tp = 100 ms
VDSS VGS ID
PD IDM ISM
±20
Operating Junction and Storage Temperature TJ, TSTG
- 55 to °C
Range
+175
Source Current (Body Diode)
Single Pulse Avalanche Energy (IPK = 47 A) (Note 3)
Lead Temperature for Soldering Purposes (1/8″ from case for 10 s)
110 m J
°C
Stresses exceeding...
