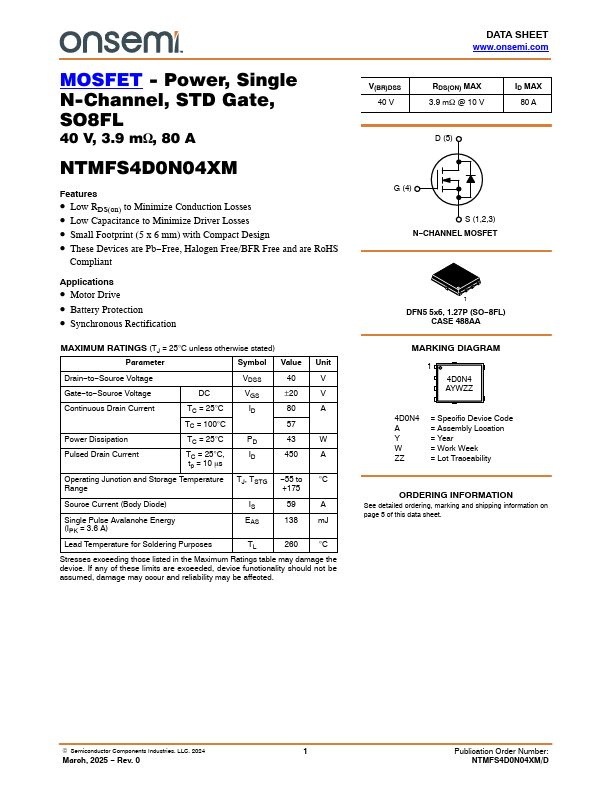

NTMFS4D0N04XM
Features
- Low RDS(on) to Minimize Conduction Losses
- Low Capacitance to Minimize Driver Losses
- Small Footprint (5 x 6 mm) with pact Design
- These Devices are Pb- Free, Halogen Free/BFR Free and are Ro HS pliant
Applications
- Motor Drive
- Battery Protection
- Synchronous Rectification
MAXIMUM RATINGS (TJ = 25°C unless otherwise stated)
Parameter
Symbol Value Unit
Drain- to- Source Voltage
VDSS
Gate- to- Source Voltage
±20
Continuous Drain Current
TC = 25°C
TC = 100°C
Power Dissipation
TC = 25°C
Pulsed Drain Current
TC = 25°C,
ID tp = 10 ms
Operating Junction and Storage Temperature TJ, TSTG
- 55 to °C
Range
+175
Source Current (Body Diode)
Single Pulse Avalanche Energy (IPK = 3.6...
