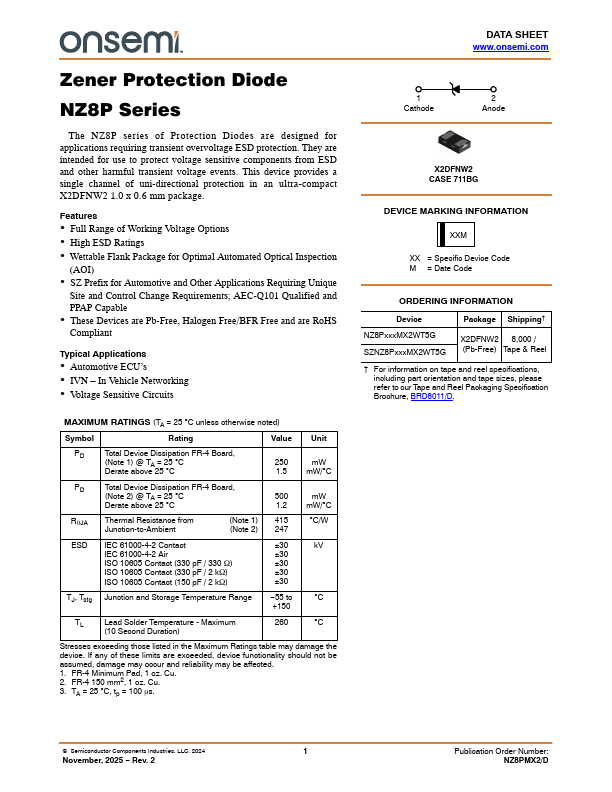

NZ8P3V3MX2WT5-G
Features
- Full Range of Working Voltage Options
- High ESD Ratings
- Wettable Flank Package for Optimal Automated Optical Inspection
(AOI)
- SZ Prefix for Automotive and Other Applications Requiring Unique
Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable
- These Devices are Pb-Free, Halogen Free/BFR Free and are Ro HS pliant
Typical Applications
- Automotive ECU’s
- IVN
- In Vehicle Networking
- Voltage Sensitive Circuits
MAXIMUM RATINGS (TA = 25 C unless otherwise noted)
Symbol
Rating
Value Unit
Total Device Dissipation FR-4 Board,
(Note 1) @ TA = 25 C
Derate above 25 C
250 m W
1.5 m W/C
Total Device Dissipation FR-4 Board,
(Note 2) @ TA = 25 C
Derate above 25 C
500 m W
1.2 m W/C
Rq JA
Thermal Resistance from Junction-to-Ambient
(Note 1) 415 (Note 2) 247
C/W
IEC 61000-4-2 Contact IEC 61000-4-2 Air ISO 10605 Contact (330 p F / 330 W) ISO 10605 Contact (330 p F / 2 k W) ISO 10605 Contact (150 p F / 2 k W)
30 k...
