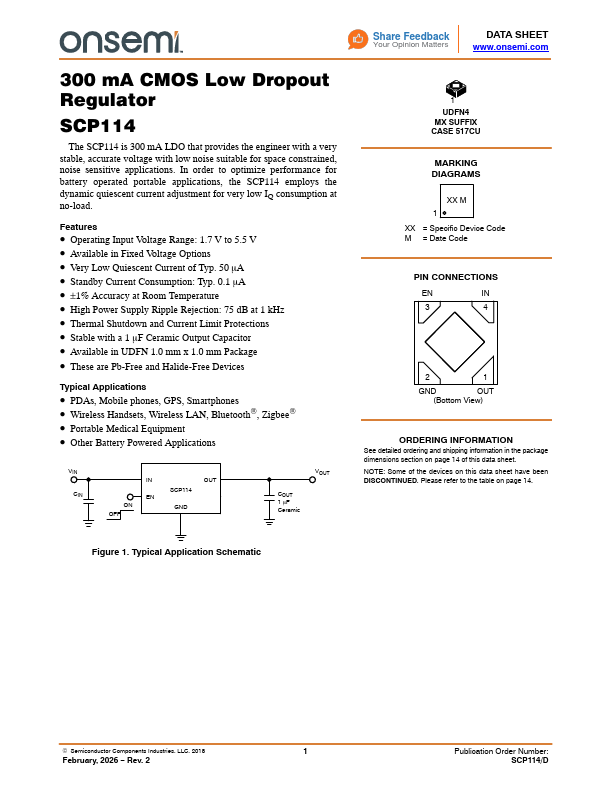

SCP114
SCP114 is CMOS Low Dropout Regulator manufactured by onsemi.
Features
- Operating Input Voltage Range: 1.7 V to 5.5 V
- Available in Fixed Voltage Options
- Very Low Quiescent Current of Typ. 50 m A
- Standby Current Consumption: Typ. 0.1 m A
- ±1% Accuracy at Room Temperature
- High Power Supply Ripple Rejection: 75 d B at 1 k Hz
- Thermal Shutdown and Current Limit Protections
- Stable with a 1 m F Ceramic Output Capacitor
- Available in UDFN 1.0 mm x 1.0 mm Package
- These are Pb-Free and Halide-Free Devices
Typical Applications
- PDAs, Mobile phones, GPS, Smartphones
- Wireless Handsets, Wireless LAN, Bluetooth®, Zigbee®
- Portable Medical Equipment
- Other Battery Powered Applications
VIN CIN
EN ON OFF
VOUT
COUT 1 m F Ceramic
Share Feedback
Your Opinion Matters
DATA SHEET .onsemi.
1 UDFN4 MX SUFFIX CASE 517CU
MARKING DIAGRAMS
XX M 1 XX = Specific Device Code M = Date Code
PIN CONNECTIONS
(Bottom View)
ORDERING INFORMATION
See detailed ordering and shipping information in the package dimensions section on page 14 of this data sheet.
NOTE: Some of the devices on this data sheet have been DISCONTINUED. Please refer to the table on page 14.
Figure 1. Typical Application Schematic
© Semiconductor ponents Industries, LLC, 2018
February, 2026
- Rev....
