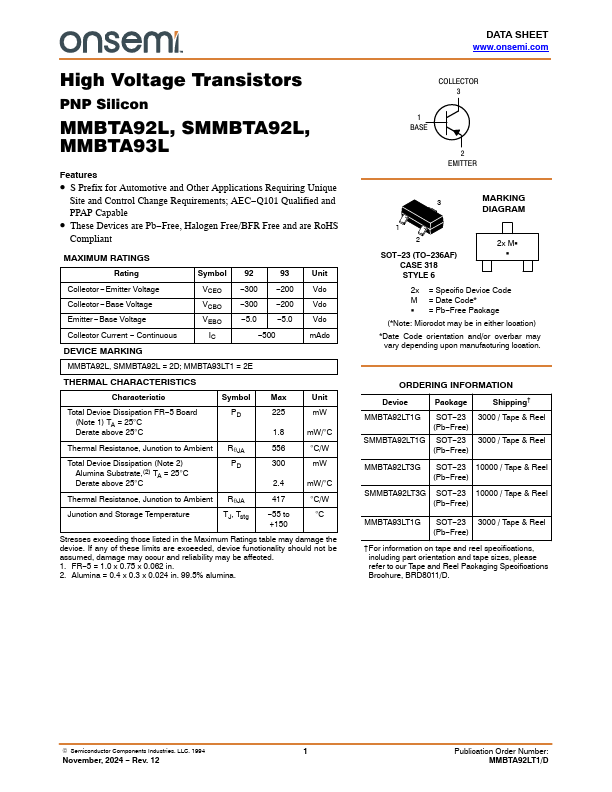

SMMBTA92L
SMMBTA92L is PNP Silicon High Voltage Transistors manufactured by onsemi.
High Voltage Transistors
PNP Silicon
MMBTA92L, SMMBTA92L, MMBTA93L
Features
- S Prefix for Automotive and Other Applications Requiring Unique
Site and Control Change Requirements; AEC- Q101 Qualified and PPAP Capable
- These Devices are Pb- Free, Halogen Free/BFR Free and are RoHS pliant
MAXIMUM RATINGS
Rating
Symbol 92
Unit
Collector
- Emitter Voltage Collector
- Base Voltage Emitter
- Base Voltage Collector Current
- Continuous DEVICE MARKING
VCEO VCBO VEBO
- 300
- 200
- 300
- 200
- 5.0
- 5.0
- 500
Vdc Vdc Vdc mAdc
MMBTA92L, SMMBTA92L = 2D; MMBTA93LT1 = 2E
THERMAL CHARACTERISTICS
Characteristic
Symbol...
