PE23108 - High-Efficiency LED Backlight Driver

General Description

The PE23108 is an ultra-high efficiency DC-DC converter solution with integrated programmable current sinks that drive up to eight strings of LEDs.

The PE23108 integrates all MOSFETs and their control and driver circuitry.

Key Features

  • Synchronous DC-DC converter with integrated FETs.
  • 2- and 3-cell Li-ion battery input voltage for LED boost: 4.5V to 15V.
  • 2.7V to 5.5V IC input voltage.
  • Proprietary architecture for ultra-high LED efficiency, up to 96%.
  • Integrated output disconnect switch.
  • Up to 42V output for maximum flexibility in assignment of LEDs to strings and selection of LED forward voltage.
  • Up to 12-bit dimming resolution with an additional 3-bit dithering.
  • Linear/logarithmic anal.

📥 Download Datasheet

Datasheet Details

Part number PE23108
Manufacturer pSemi
File Size 3.96 MB
Description High-Efficiency LED Backlight Driver
Datasheet download datasheet PE23108 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
PE2312 Dual P & N-Channel Enhancement Mode Power MOSFET semi one
PE2317 P-Channel Enhancement Mode Power MOSFET semi one
PE2319 P-Channel Enhancement Mode Power MOSFET ChipSourceTek
PE2300 N-Channel Enhancement Mode Power MOSFET semi one
PE2301 P-Channel Enhancement Mode Power MOSFET semi one

Other Datasheets by pSemi

Part Number Description
PE24108 Two-stage Buck Regulator
PE24111 20A Two-stage Buck Regulator
PE25200 10A Charge Pump / Capacitor Divider
PE25204 6A Charge Pump / Capacitor Divider
PE25213 10A Charge Pump / Capacitor Divider

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

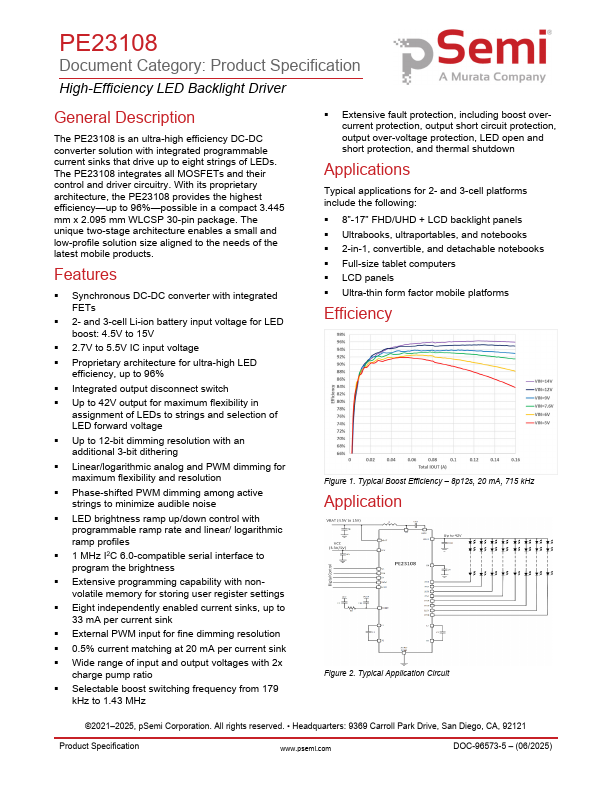

PE23108 Document Category: Product Specification High-Efficiency LED Backlight Driver General Description The PE23108 is an ultra-high efficiency DC-DC converter solution with integrated programmable current sinks that drive up to eight strings of LEDs. The PE23108 integrates all MOSFETs and their control and driver circuitry. With its proprietary architecture, the PE23108 provides the highest efficiency—up to 96%—possible in a compact 3.445 mm x 2.095 mm WLCSP 30-pin package. The unique two-stage architecture enables a small and low-profile solution size aligned to the needs of the latest mobile products. Features  Synchronous DC-DC converter with integrated FETs  2- and 3-cell Li-ion battery input voltage for LED boost: 4.5V to 15V  2.7V to 5.
