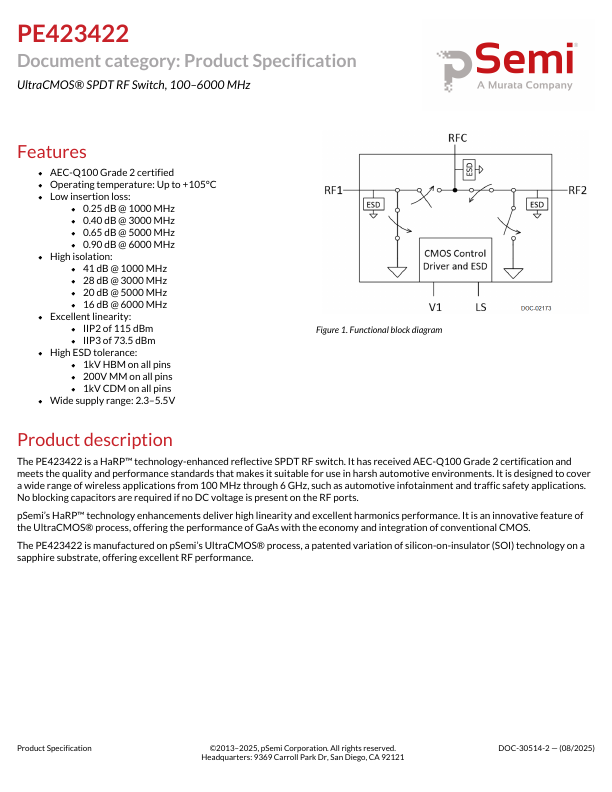

Datasheet Summary
Document category: Product Specification
UltraCMOS® SPDT RF Switch, 100- 6000 MHz
Features
AEC-Q100 Grade 2 certified Operating temperature: Up to +105°C Low insertion loss:
0.25 dB @ 1000 MHz 0.40 dB @ 3000 MHz 0.65 dB @ 5000 MHz 0.90 dB @ 6000 MHz High isolation: 41 dB @ 1000 MHz 28 dB @ 3000 MHz 20 dB @ 5000 MHz 16 dB @ 6000 MHz Excellent linearity: IIP2 of 115 dBm IIP3 of 73.5 dBm High ESD tolerance: 1kV HBM on all pins 200V MM on all pins 1kV CDM on all pins Wide supply range: 2.3- 5.5V
Figure 1. Functional block diagram
Product description
The PE423422 is a HaRP™ technology-enhanced reflective SPDT RF switch. It has received AEC-Q100 Grade 2 certification and meets the...
