Datasheet Summary
Document category: Product Specification
UltraCMOS® SP4T RF Switch, 50- 3000 MHz
Features
AEC-Q100 Grade 2 certified Supports operating temperature up to +105°C HaRPTM technology enhancements provide excellent linearity:
Low harmonics of 2fo =
- 83 dBc and 3fo =
- 77 dBc @ +35 dBm IMD3 of
- 111 dBm @ WCDMA band 1 IIP3 of 68 dBm Low insertion loss: 0.50 dB @ 1000 MHz 0.65 dB @ 2200 MHz High isolation: 32 dB @ 1000 MHz 25 dB @ 2200 MHz High ESD performance: 2000V HBM on all pins 100V MM on all pins 1000V CDM on all pins Integrated decoder for 2-pin control: Accepts 1.8V and 2.75V levels

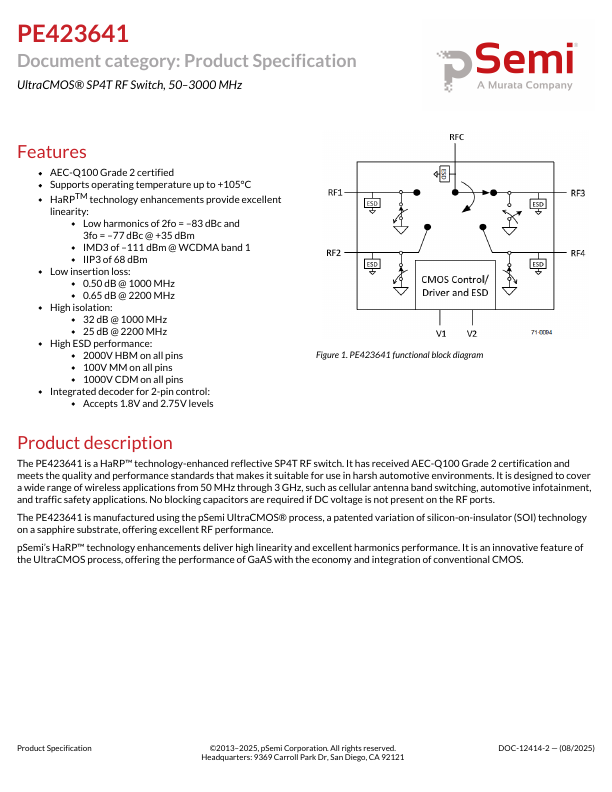

Figure 1. PE423641 functional block diagram
Product description
The PE423641 is a HaRP™...
