Datasheet Summary
Document Category: Advance Information
UltraCMOS® SPDT RF Switch, 9 kHz- 30 GHz
Features
- Ultra wide frequency: 9 kHz- 30 GHz
- Low insertion loss:
- 1.3 dB @ 10 GHz
- 1.6 dB @ 30 GHz
- IP3: 48 dBm
- Power handling: 34 dBm peak
- High return loss: >17 dB across the band
- Fast switching time: 8 ns
- Package: 20-lead 3×3 mm LGA
Applications
- Test and measurement (T&M)
- 5G mmWave
- Microwave backhaul
- Radar
- Satellite munications
]

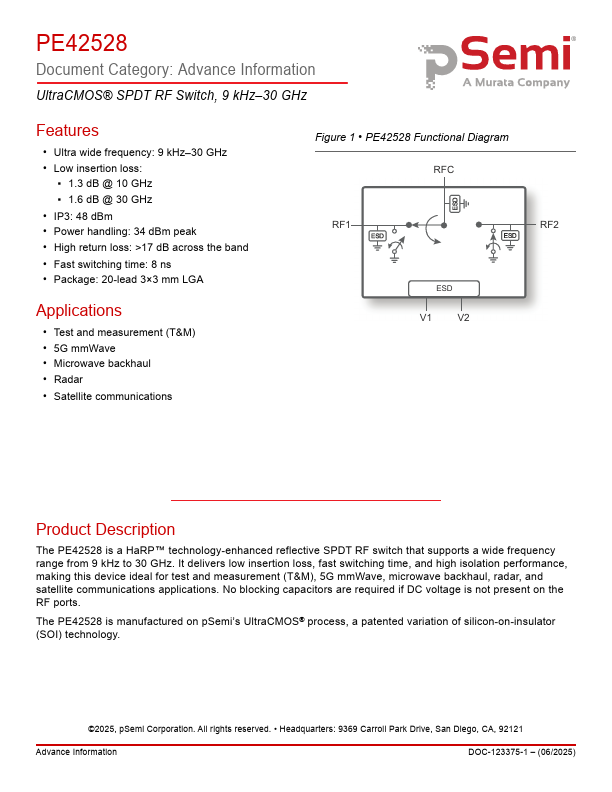

Figure 1
- PE42528 Functional Diagram
RF1
RF2
V1 V2
Product Description
The PE42528 is a HaRP™ technology-enhanced reflective SPDT RF switch that supports a wide frequency range from 9 kHz to 30 GHz. It delivers low insertion loss, fast...
