PE43670
Features

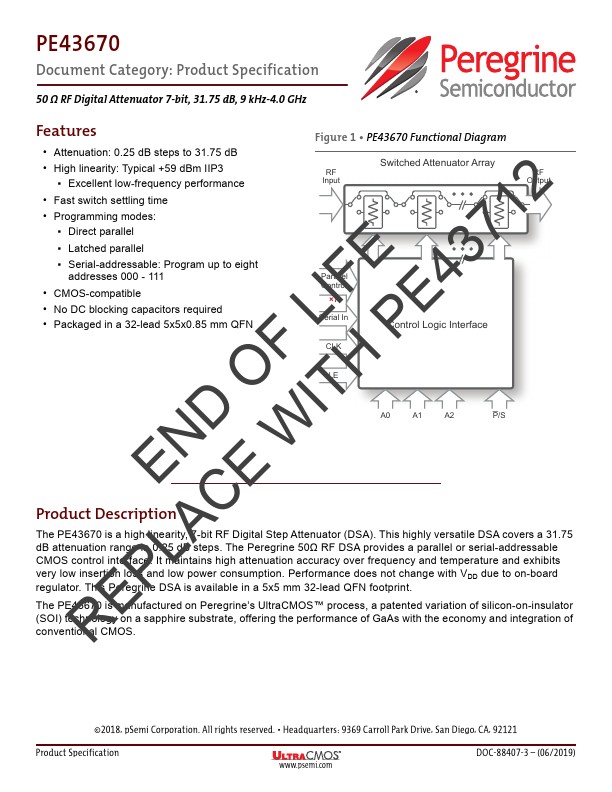

Figure 1
- PE43670 Functional Diagram
- Attenuation: 0.25 d B steps to 31.75 d B
- High linearity: Typical +59 d Bm IIP3
- Excellent low-frequency performance
- Fast switch settling time
- Programming modes:
- Direct parallel 7
- Latched parallel E 3
- Serial-addressable: Program up to eight addresses 000
- 111
IF 4
- CMOS-patible E
- No DC blocking capacitors required OF LITH P
- Packaged in a 32-lead 5x5x0.85 mm QFN
Switched Attenuator Array
Input
Output
Parallel Control
×7 Serial In
Control Logic Interface
A0
A1
A2
P/S
ENDCE W Product Description
The PE43670 is a high linearity, 7-bit RF Digital Step Attenuator (DSA). This highly versatile DSA covers a 31.75
A d B attenuation range in 0.25 d B steps. The Peregrine 50Ω RF DSA provides a parallel or serial-addressable L CMOS control interface. It maintains high attenuation accuracy over frequency and temperature and exhibits very low insertion loss and low power consumption. Performance does not...
