PE44820 - 8-bit RF Digital Phase Shifter

General Description

The PE44820 is a HaRP™ technology-enhanced 8-bit digital phase shifter (DPS) designed for use in a broad range of applications including: beamforming networks, distributed antenna systems, active antenna systems and phased array applications.

Key Features

  • 8-bit full-range phase shifter of 358.6°; 180°, 90°, 45°, 22.5°, 11.2°, 5.6°, 2.8° and 1.4° bits.
  • Low RMS phase and amplitude error.
  • RMS phase error of 1.0°.
  • RMS amplitude error of 0.1 dB.
  • High linearity of +60 dBm IIP3.
  • Extended narrow band frequency operation of 1.1.
  • 3.0 GHz.
  • +105 °C operating temperature.
  • Packaging.
  • 32-lead 5 × 5 × 0.85 mm QFN.

📥 Download Datasheet

Datasheet Details

Part number PE44820
Manufacturer pSemi
File Size 2.70 MB
Description 8-bit RF Digital Phase Shifter
Datasheet download datasheet PE44820 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
PE44820 RF Digital Phase Shifter Peregrine Semiconductor
PE4407A P-Channel Enhancement Mode Power MOSFET ChipSourceTek
PE4419 P-Channel Enhancement Mode Power MOSFET semi one
PE4419 P-Channel Enhancement Mode Power MOSFET Semione
PE4425 P-Channel Enhancement Mode Power MOSFET semi one

Other Datasheets by pSemi

Part Number Description
PE44951 Monolithic Phase and Amplitude Controller
PE4151 Low-frequency Passive Mixer
PE423211 SPDT RF Switch
PE423422 SPDT RF Switch
PE423641 SP4T RF Switch

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

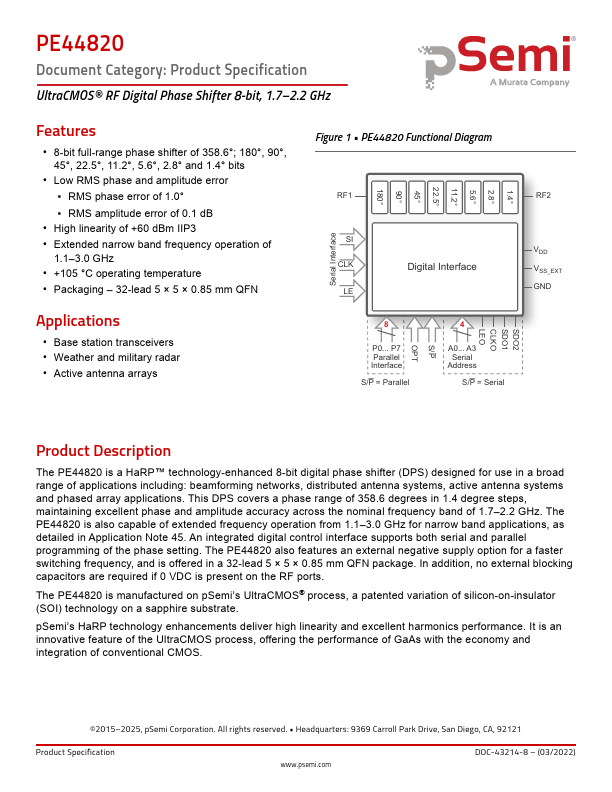

PE44820 Document Category: Product Specification UltraCMOS® RF Digital Phase Shifter 8-bit, 1.7–2.2 GHz Features • 8-bit full-range phase shifter of 358.6°; 180°, 90°, 45°, 22.5°, 11.2°, 5.6°, 2.8° and 1.4° bits • Low RMS phase and amplitude error ▪ RMS phase error of 1.0° ▪ RMS amplitude error of 0.1 dB • High linearity of +60 dBm IIP3 • Extended narrow band frequency operation of 1.1–3.0 GHz • +105 °C operating temperature • Packaging – 32-lead 5 × 5 × 0.85 mm QFN Applications • Base station transceivers • Weather and military radar • Active antenna arrays Figure 1 • PE44820 Functional Diagram Serial Interface RF1 SI CLK Digital Interface LE 8 P0... P7 Parallel Interface S/P = Parallel 4 A0... A3 Serial Address S/P = Serial SDO2 SDO1 CLKO LEO S/P OPT 1.4° 2.8° 5.6° 11.2° 22.
