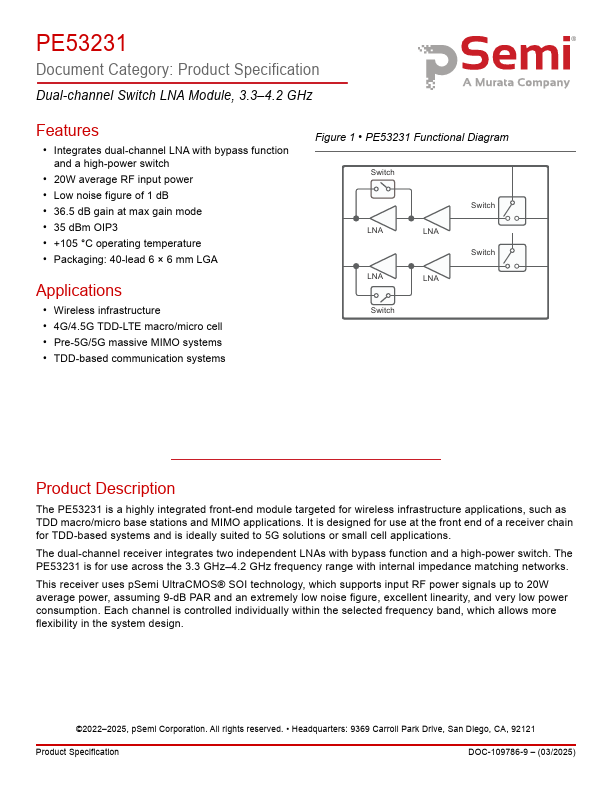

PE53231
Features
- Integrates dual-channel LNA with bypass function and a high-power switch
- 20W average RF input power
- Low noise figure of 1 d B
- 36.5 d B gain at max gain mode
- 35 d Bm OIP3
- +105 °C operating temperature
- Packaging: 40-lead 6 × 6 mm LGA
Applications
- Wireless infrastructure
- 4G/4.5G TDD-LTE macro/micro cell
- Pre-5G/5G massive MIMO systems
- TDD-based munication systems
Figure 1
- PE53231 Functional Diagram
Switch
LNA Switch
Switch Switch
Product Description
The PE53231 is a highly integrated front-end module targeted for wireless infrastructure applications, such as TDD macro/micro base stations and MIMO applications. It is designed for use at the front end of a receiver chain for TDD-based systems and is ideally suited to 5G solutions or small cell applications.
The dual-channel receiver integrates two independent LNAs with bypass function and a high-power switch. The PE53231 is for use across the 3.3 GHz- 4.2 GHz frequency range with internal...
