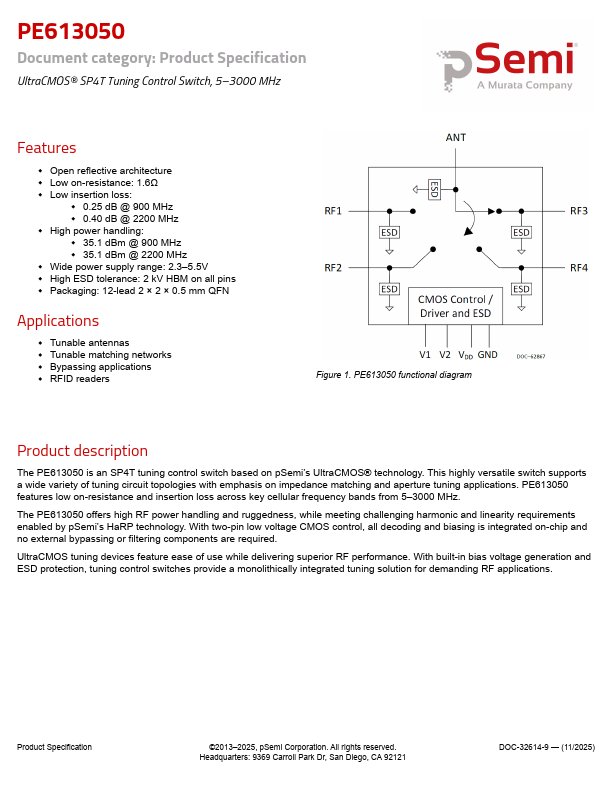

PE613050 Datasheet Sp4t Tuning Control Switch

Manufacturer: pSemi

Overview: PE613050 Document category: Product Specification UltraCMOS® SP4T Tuning Control Switch, 5–3000.

Datasheet Details

Part number PE613050
Manufacturer pSemi
File Size 620.60 KB
Description SP4T Tuning Control Switch
Datasheet PE613050-pSemi.pdf

General Description

The PE613050 is an SP4T tuning control switch based on pSemi’s UltraCMOS® technology.

This highly versatile switch supports a wide variety of tuning circuit topologies with emphasis on impedance matching and aperture tuning applications.

PE613050

Key Features

  • Open reflective architecture Low on-resistance: 1.6Ω Low insertion loss: 0.25 dB @ 900 MHz 0.40 dB @ 2200 MHz High power handling: 35.1 dBm @ 900 MHz 35.1 dBm @ 2200 MHz Wide power supply range: 2.3.
  • 5.5V High ESD tolerance: 2 kV HBM on all pins Packaging: 12-lead 2 × 2 × 0.5 mm QFN.
