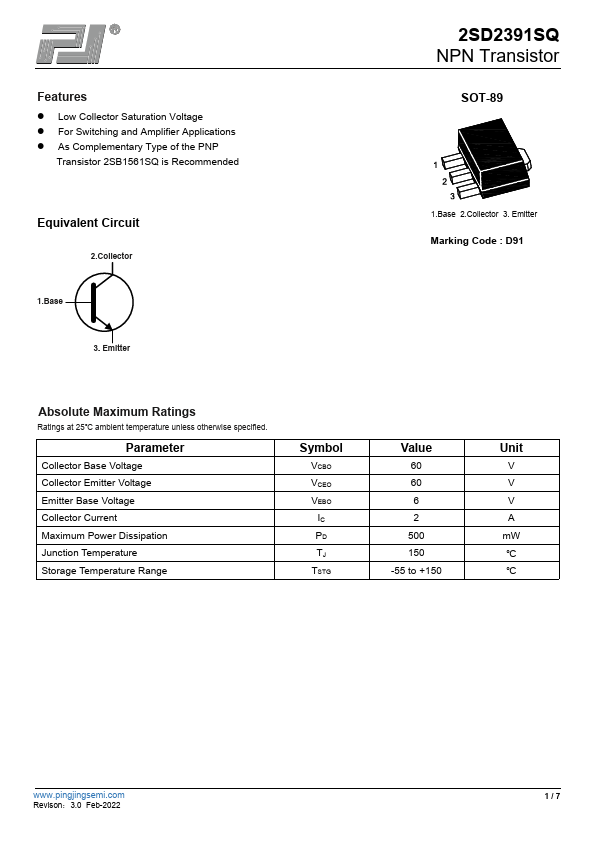

2SD2391SQ
Features
- Low Collector Saturation Voltage
- For Switching and Amplifier Applications
- As plementary Type of the PNP
Transistor 2SB1561SQ is Remended
Equivalent Circuit
2.Collector
1.Base
3. Emitter
2SD2391SQ NPN Transistor
SOT-89
1.Base 2.Collector 3. Emitter
Marking Code : D91
Absolute Maximum Ratings
Ratings at 25℃ ambient temperature unless otherwise specified.
Parameter
Collector Base Voltage Collector Emitter Voltage Emitter Base Voltage Collector Current Maximum Power Dissipation Junction Temperature Storage Temperature Range
Symbol
VCBO VCEO VEBO
IC PD TJ TSTG
Value
60 60 6 2 500 150 -55 to +150
Unit
V V V A m W ℃ ℃
.pingjingsemi.
1/7
Revison：3.0 Feb-2022
Electrical Characteristics (TA=25℃)
Parameter
DC Current Gain at VCE = 2 V, IC = 500 m A at VCE = 2 V, IC = 1.5 A Collector Base Cutoff Current at VCB = 50 V Emitter Base Cutoff Current at VEB = 5 V Collector Base Breakdown Voltage at IC = 50 μA Collector Emitter Breakdown Voltage at IC = 1 m A Emitter Base Breakdown...
