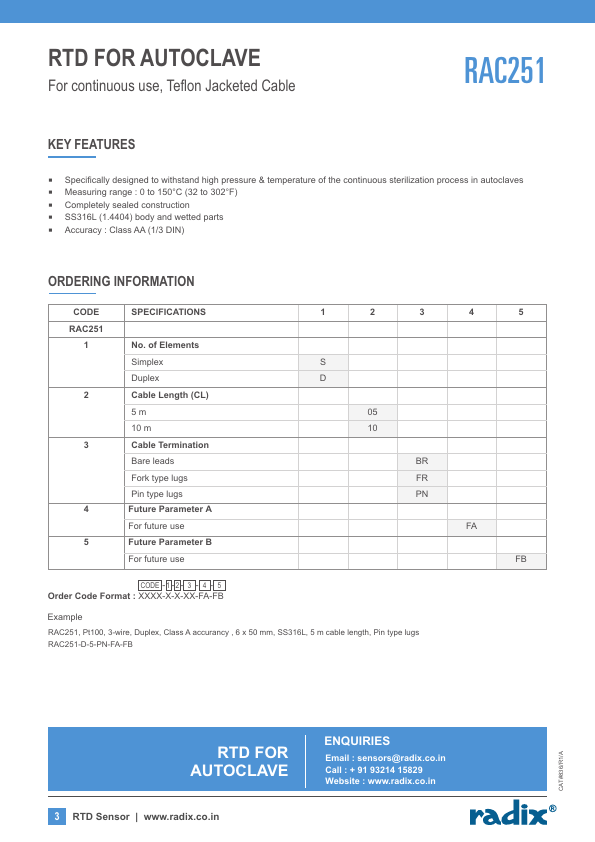

FEATURES
¡ Specifically designed to withstand high pressure & temperature of the continuous sterilization process in autoclaves ¡ Measuring range : 0 to 150°C (32 to 302°F) ¡ Completely sealed construction ¡ SS316L (1.4404) body and wetted parts ¡ Accuracy : Class AA (1/3 DIN) ORDERING INFORMATION CODE RAC251 1 2 3 4 5 SPECIFICATIONS No. of Elements Simplex Duplex Cable Length (CL) 5m 10 m Cable Termination Bare leads Fork type lugs Pin type lugs Future Parameter A For future use Future Parameter B For future use 1 2 3 4 5 S D 05 10 BR FR PN FA FB CODE - 1 - 2 - 3 - 4 - 5 Order Code Format : XXXX-X-X-XX-FA-FB Example RAC251, Pt100, 3-wire, Duplex, Class A accurancy , 6 x 50 mm, SS316L, 5 m cable length, Pin type lugs RAC251-D-5-PN-FA-FB CAT#836/R1/A RTD FOR AUTOCLAVE 3 RTD Sensor | ENQUIRIES Email : sensors@radix.co.in Call : + 91 93214 15829 Website :
radix
