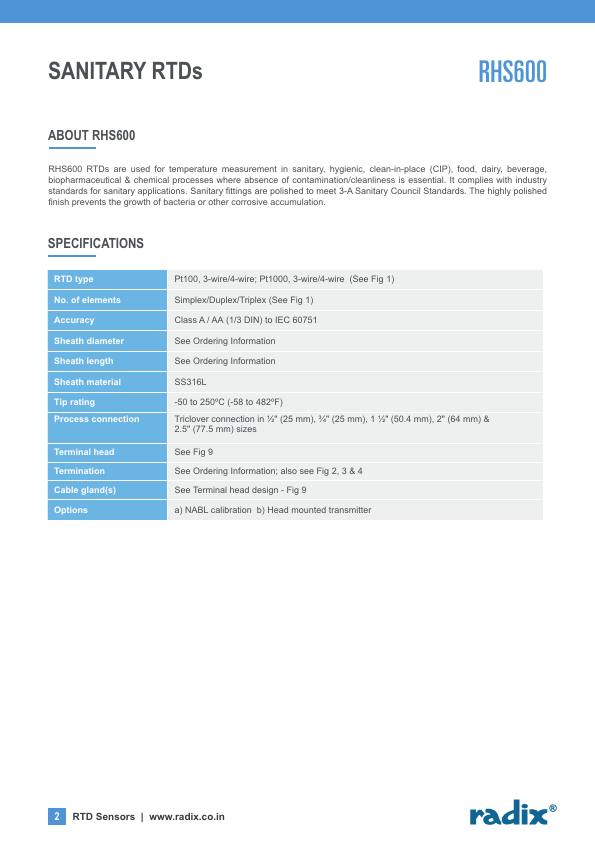

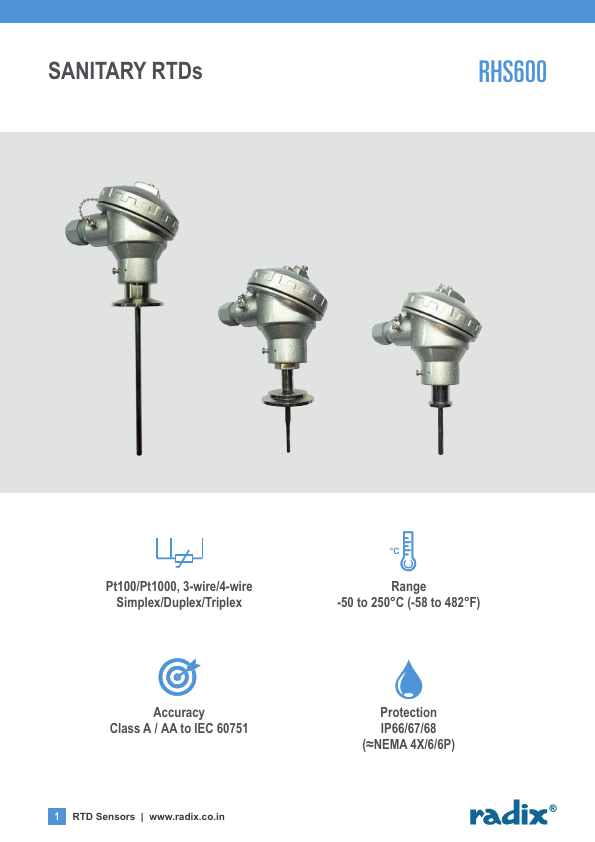

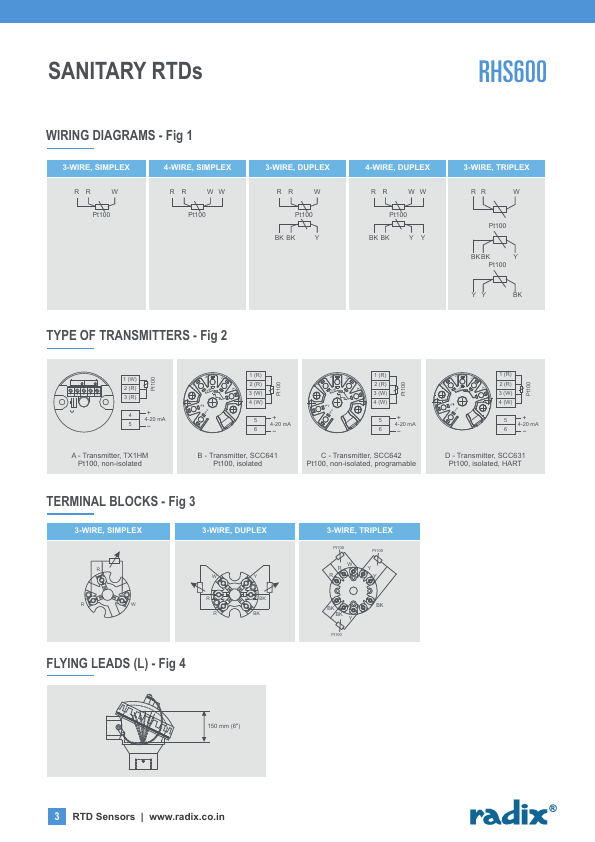

SANITARY RTDs Pt100/Pt1000, 3-wire/4-wire Simplex/Duplex/Triplex °C Range -50 to 250°C (-58 to 482°F) Accuracy Class A / AA to IEC 60751 1 RTD Sensors | .radix.co.in Protection IP66/67/68 (≈NEMA 4X/6/6P) SANITARY RTDs ABOUT RHS600 RHS600 RTDs are used for temperature measurement in sanitary, hygienic, clean-in-place (CIP), food, dairy, beverage, biopharmaceutical & chemical processes where absence of contamination/cleanliness is essential. It plies with industry standards for sanitary applications. Sanitary fittings are polished to meet 3-A Sanitary Council Standards. The highly polished finish prevents the growth of bacteria or other corrosive accumulation. SPECIFICATIONS RTD type No. of elements Accuracy Sheath diameter Sheath length Sheath material Tip rating Process connection Terminal head Termination Cable gland(s) Options Pt100, 3-wire/4-wire; Pt1000, 3-wire/4-wire (See Fig 1) Simplex/Duplex/Triplex (See Fig 1) Class A / AA (1/3 DIN) to IEC 60751 See Ordering Information See Ordering Information SS316L -50 to 250ºC (-58 to 482ºF) Triclover connection in ¹⁄ " (25 mm), ³⁄ " (25 mm), 1 ¹⁄ " (50.4 mm), 2" (64 mm) & 2.5" (77.5 mm) sizes See Fig 9 See Ordering Information; also see Fig 2, 3 & 4 See Terminal head design - Fig 9 a) NABL calibration b) Head mounted transmitter 2 RTD Sensors | .radix.co.in SANITARY RTDs WIRING DIAGRAMS - Fig 1 3-WIRE, SIMPLEX Pt100 4-WIRE, SIMPLEX Pt100 3-WIRE, DUPLEX Pt100 BK BK 4-WIRE, DUPLEX Pt100 BK...
