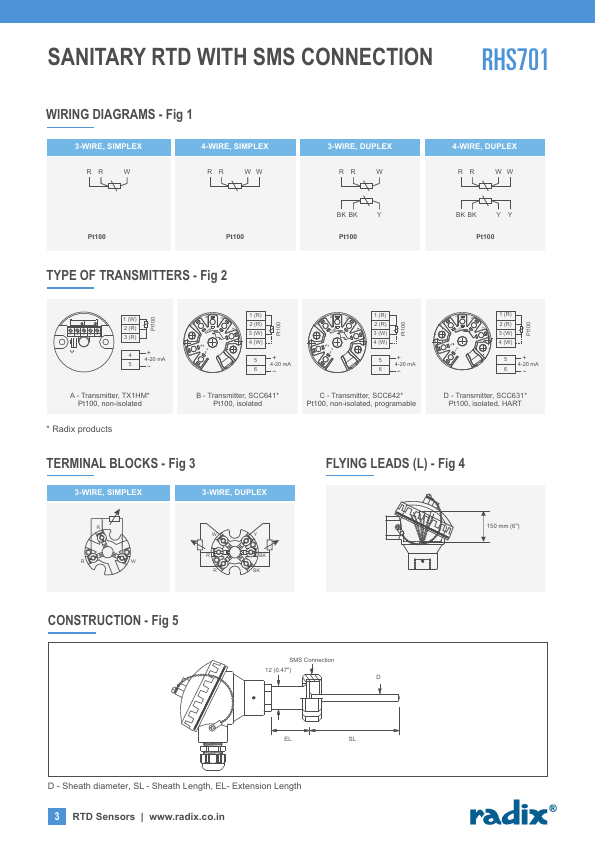

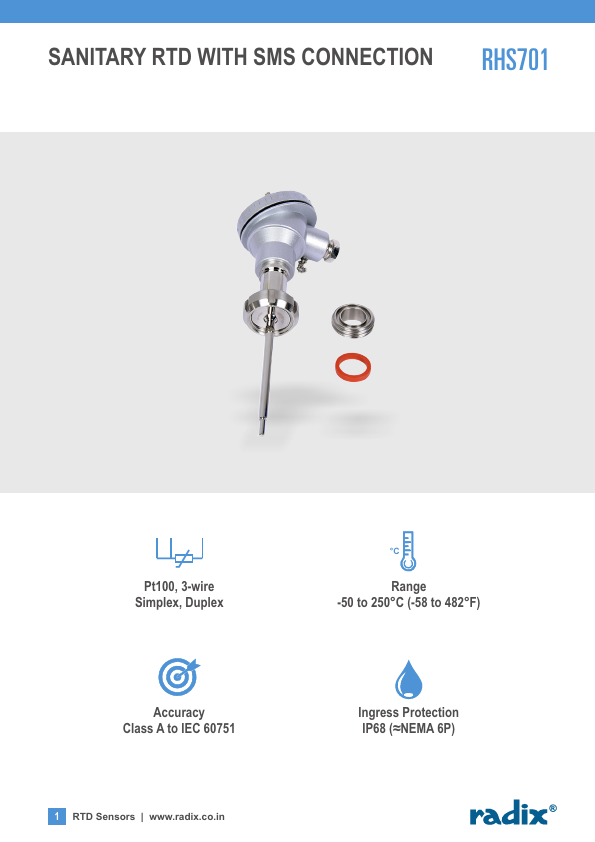

features a surface finish of Ra 0.6 μm for all wetted parts, ensuring pliance with sanitary standards. The RHS701 RTD sensor is available with a sanitary SMS connection with or without male part and gasket. It also features a reduced tip design for quick response and to minimize flow restrictions during operation. SPECIFICATIONS RTD type No. of elements Accuracy Sheath diameter (D) Sheath length (SL) Wetted parts Non-wetted parts Tip rating Terminal head Termination Cable gland(s) Process connection Pressure rating Surface finish Option Calibration Pt100, 3-wire/4-wire (Fig 1) Simplex/Duplex (Fig 3) Class A / 1/3 DIN to IEC 60751 (Table 3) See Ordering Information & Fig 5 See Ordering Information & Fig 5 SS316L (1.4404) SS304 -50 to 250ºC (-58 to 482ºF) See Fig 12 See Ordering Information (Fig 6) Polyamide See Table 1 40 bar Better than 0.6 micron for wetted parts Head mounted transmitter (Fig 2) Default : Single point calibration certificate Option : 3-point or 5-point calibration certificate (See Ordering Information) 2 RTD Sensors | .radix.co.in SANITARY RTD WITH SMS CONNECTION RHS701 WIRING DIAGRAMS - Fig 1 3-WIRE, SIMPLEX 4-WIRE, SIMPLEX 3-WIRE, DUPLEX 4-WIRE, DUPLEX Pt100 Pt100 BK BK Pt100 BK BK Pt100 TYPE OF TRANSMITTERS - Fig 2 1 2345 1 (W) 2 (R) 3 (R) 4+ 4-20 m A 5- - Transmitter, TX1HM- Pt100, non-isolated - Radix...
