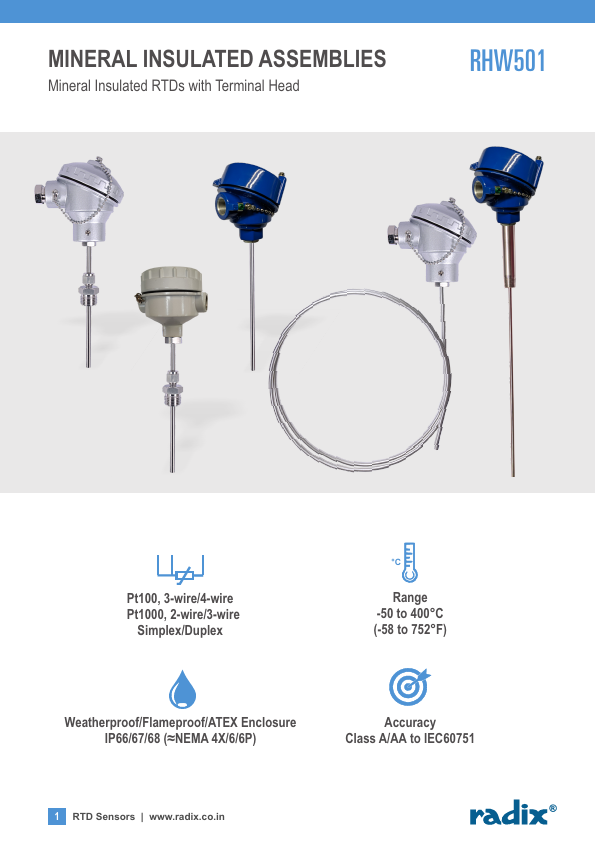

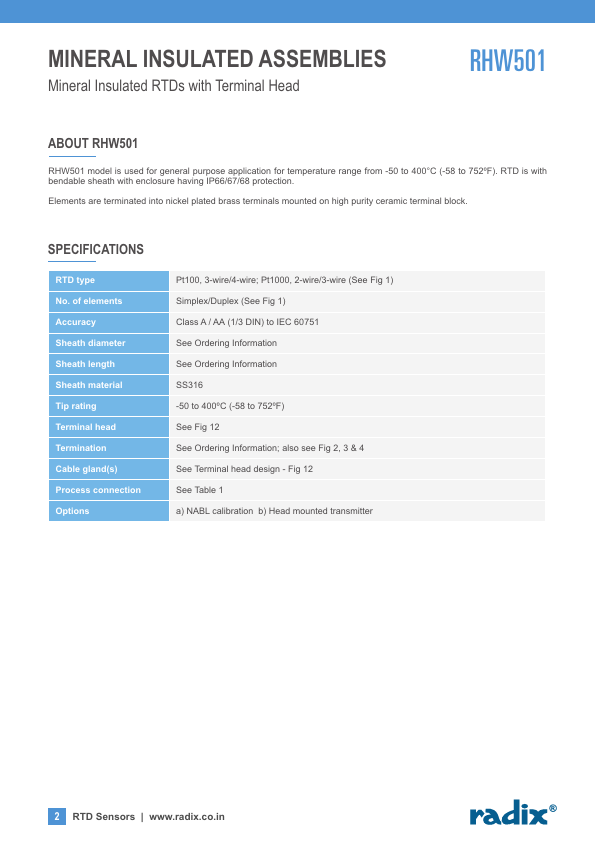

MINERAL INSULATED ASSEMBLIES Mineral Insulated RTDs with Terminal Head Pt100, 3-wire/4-wire Pt1000, 2-wire/3-wire Simplex/Duplex °C Range -50 to 400°C (-58 to 752°F) Weatherproof/Flameproof/ATEX Enclosure IP66/67/68 (≈NEMA 4X/6/6P) Accuracy Class A/AA to IEC60751 1 RTD Sensors | .radix.co.in MINERAL INSULATED ASSEMBLIES Mineral Insulated RTDs with Terminal Head ABOUT RHW501 RHW501 model is used for general purpose application for temperature range from -50 to 400°C (-58 to 752ºF). RTD is with bendable sheath with enclosure having IP66/67/68 protection. Elements are terminated into nickel plated brass terminals mounted on high purity ceramic terminal block. SPECIFICATIONS RTD type No. of elements Accuracy Sheath diameter Sheath length Sheath material Tip rating Terminal head Termination Cable gland(s) Process connection Options Pt100, 3-wire/4-wire; Pt1000, 2-wire/3-wire (See Fig 1) Simplex/Duplex (See Fig 1) Class A / AA (1/3 DIN) to IEC 60751 See Ordering Information See Ordering Information SS316 -50 to 400ºC (-58 to 752ºF) See Fig 12 See Ordering Information; also see Fig 2, 3 & 4 See Terminal head design - Fig 12 See Table 1 a) NABL calibration b) Head mounted transmitter 2 RTD Sensors | .radix.co.in MINERAL INSULATED ASSEMBLIES Mineral Insulated RTDs with Terminal Head WIRING DIAGRAMS - Fig 1 3-WIRE, SIMPLEX 4-WIRE, SIMPLEX 3-WIRE, DUPLEX 4-WIRE, DUPLEX 2-WIRE, SIMPLEX Pt100/Pt1000 Pt100 BK...
