TD035TTEA3
Description

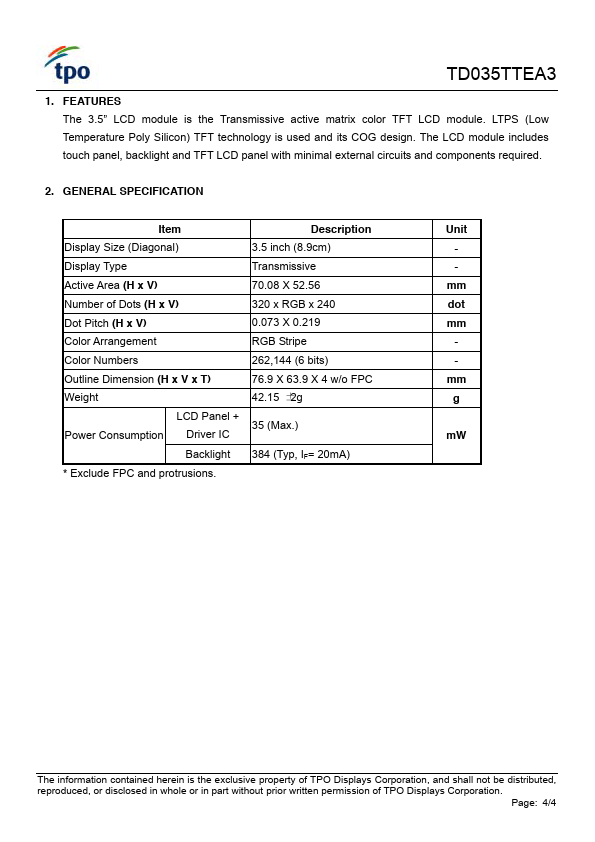

Unit Display Size (Diagonal) 3.5 inch (8.9cm) - Display Type Transmissive - Active Area (H x V) 70.08 X 52.56 mm Number of Dots (H x V) 320 x RGB x 240 dot Dot Pitch (H x V) 0.073 X 0.219 mm Color Arrangement RGB Stripe - Color Numbers 262,144 (6 bits) - Outline Dimension (H x V x T) 76.9 X 63.9 X 4 w/o FPC mm Weight 42.15 ±2g g LCD Panel + 35 (Max.) Power Consumption Driver IC mW Backlight 384 (Typ, IF= 20mA) * Exclude FPC and protrusions.
Key Features
- GENERAL SPECIFICATION Item
