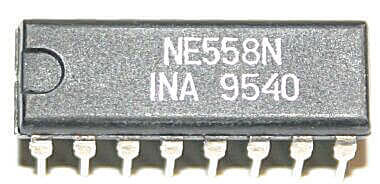

NE558 Datasheet

The NE558 is a Quad Timer. Download the datasheet PDF and view key features and specifications below.

Part NumberNE558
ManufacturerFairchild Semiconductor
Overview The NE558 series are monolithic Quad Timers which can be used to produce four entirely independent timing functions. These highly stable, general purpose controllers can be used in a monostable mode t.
*
*
*
*
* Wide Supply Voltage Range: 4.5V To 16V 100 mA Output Current Per Section Edge Triggered Without Coupling Capacitor Time Period Equals RC Output independent Of Trigger Conditions Description The NE558 series are monolithic Quad Timers which can be used to produce four entirely independent .
Part NumberNE558
DescriptionQUAD TIMER
ManufacturerUnisonic Technologies
Overview The UTC NE558 is a monolithic quad timer which can be used to produce four entirely independent timing functions. The highly stable, general purpose controller can be used in a monostable mode to prod. *Wide supply voltage: Vcc= 4.5V~15V *100mA output current per-section *Edge trigger without coupling capacitor *Time period equals RC *Output independent APPLICATIONS *Precision timing *Quad one-shot *Timing delay generation *Sequential timing. BLOCK DIAGRAM SOP-16 DIP-16 UTC UNISONIC TECHNOLOGIE.
Part NumberNE558
DescriptionQuad timer
ManufacturerPhilips Semiconductors
Overview The NE558 Quad Timers are monolithic timing devices which can be used to produce four independent timing functions. The NE558 output sinks current. These highly stable, general purpose controllers can.
* 100 mA output current per section
* Edge-triggered (no coupling capacitor)
* Output independent of trigger conditions
* Wide supply voltage range 4.5 V to 16 V
* Timer intervals from microseconds to hours
* Time period equals RC
* Military qualifications pending. APPLICATIONS
* Sequential timing
*.
