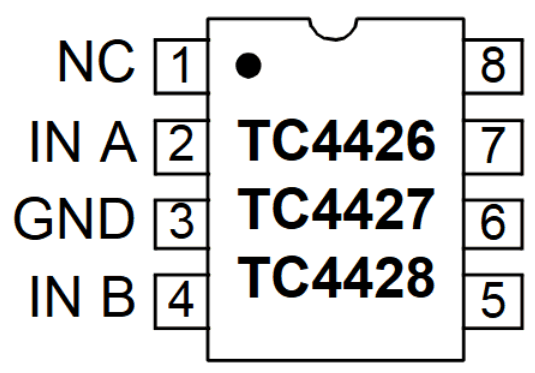

TC4428 integrated circuit image

TC4428 Datasheet

The TC4428 is a (TC4426 - TC4428) 1.5A DUAL HIGH-SPEED POWER MOSFET DRIVERS. Download the datasheet PDF and view key features and specifications below.

Part NumberTC4428
ManufacturerTelCom Semiconductor
Overview The TC4426/4427/4428 are improved versions of the earlier TC426/427/428 family of buffer/drivers (with which they are pin compatible). They will not latch up under any conditions within their power an. s s s s s s High Peak Output Current ............................... 1.5A Wide Operating Range .......................... 4.5V to 18V High Capacitive Load Drive Capability ........................ 1000 pF in 25 nsec Short Delay Time ................................ <40nsec Typ Consistent Delay Times.
Part NumberTC4428
Description1.5A Dual High-Speed Power MOSFET Drivers
ManufacturerMicrochip Technology
Overview The TC4426/TC4427/TC4428 are improved versions of the earlier TC426/TC427/TC428 family of MOSFET drivers. The TC4426/TC4427/TC4428 devices have matched rise and fall times when charging and dischargi.
* High Peak Output Current: 1.5A
* Wide Input Supply Voltage Operating Range: - 4.5V to 18V
* High Capacitive Load Drive Capability: 1000 pF in 25 ns (typical)
* Short Delay Times: 40 ns (typical)
* Matched Rise and Fall Times
* Low Supply Current: - With Logic ‘1’ Input
  – 4 mA - With Logic ‘0’ Inp.
