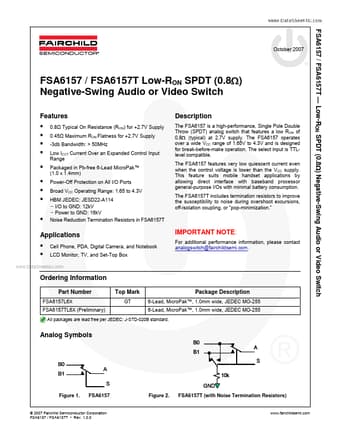

October 2007
FSA6157 / FSA6157T Low-RON SPDT (0.8Ω)
Negative-Swing Audio or Video Switch
Features
ƒ 0.8Typical On Resistance (RON) for +2.7V Supply
ƒ 0.45Maximum RON Flatness for +2.7V Supply
ƒ -3db Bandwidth: > 50MHz
ƒ Low ICCT Current Over an Expanded Control Input
Range
ƒ Packaged in Pb-free 6-Lead MicroPak™
(1.0 x 1.4mm)
ƒ Power-Off Protection on All I/O Ports
ƒ Broad VCC Operating Range: 1.65 to 4.3V
ƒ HBM JEDEC: JESD22-A114
- I/O to GND: 12kV
- Power to GND: 16kV
ƒ Noise Reduction Termination Resistors in FSA6157T
Applications
ƒ Cell Phone, PDA, Digital Camera, and Notebook
ƒ LCD Monitor, TV, and Set-Top Box
www.DataSheet4U.com
Ordering Information
Description
The FSA6157 is a high-performance, Single Pole Double
Throw (SPDT) analog switch that features a low RON of
0.8Ω (typical) at 2.7V supply. The FSA6157 operates
over a wide VCC range of 1.65V to 4.3V and is designed
for break-before-make operation. The select input is TTL-
level compatible.
The FSA6157 features very low quiescent current even
when the control voltage is lower than the VCC supply.
This feature suits mobile handset applications by
allowing direct interface with baseband processor
general-purpose I/Os with minimal battery consumption.
The FSA6157T includes termination resistors to improve
the susceptibility to noise during overshoot excursions,
off-isolation coupling, or “pop-minimization.”
IMPORTANT NOTE:
For additional performance information, please contact
analogswitch@fairchildsemi.com.
Part Number
Top Mark
Package Description
FSA6157L6X
FSA6157TL6X (Preliminary)
GT 6-Lead, MicroPak™, 1.0mm wide, JEDEC MO-255
6-Lead, MicroPak™, 1.0mm wide, JEDEC MO-255
All packages are lead free per JEDEC: J-STD-020B standard.
Analog Symbols
B0
A
B1
S
Figure 1. FSA6157
B0
A
B1
S
Figure 2.
10k
GND
FSA6157T (with Noise Termination Resistors)
© 2007 Fairchild Semiconductor Corporation
FSA6157 / FSA6157T • Rev. 1.0.0
www.fairchildsemi.com
