LM358 Datasheet - 3Peak

LM358 Low-Power 36V Op Amps

* Internal Frequency Compensation for Unity Gain * High DC Voltage Gain: 110dB(Typ) * Wide Bandwidth at Unity Gain: 1.2MHz(Typ) * Wide Power Supply Range: 3V to 36V * Dual Supplies: ±1.5V to ±18V * EMIRR IN+: 71dB(Under 1GHz) * Low Supply Current: 100μA(Typ) * Offset.

LM358 Datasheet (763.33 KB)

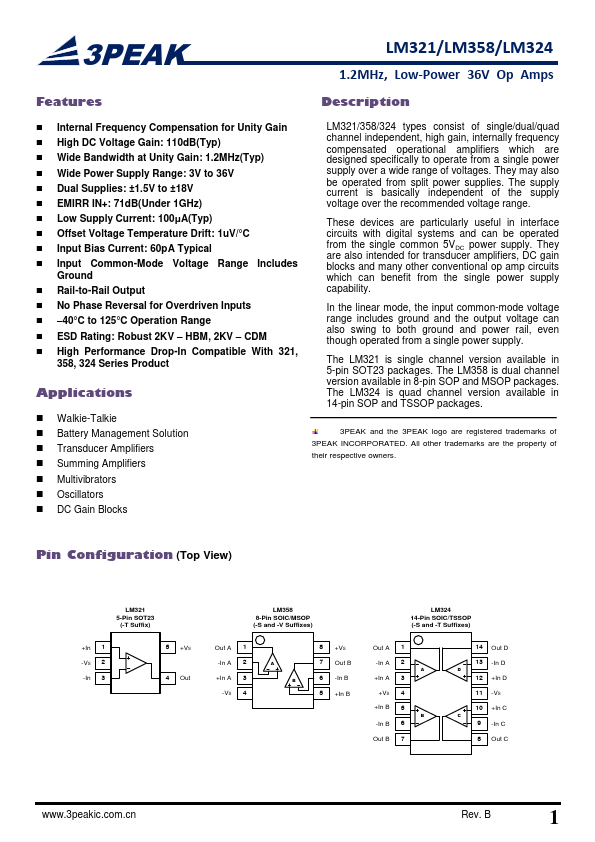

Preview of LM358 PDF

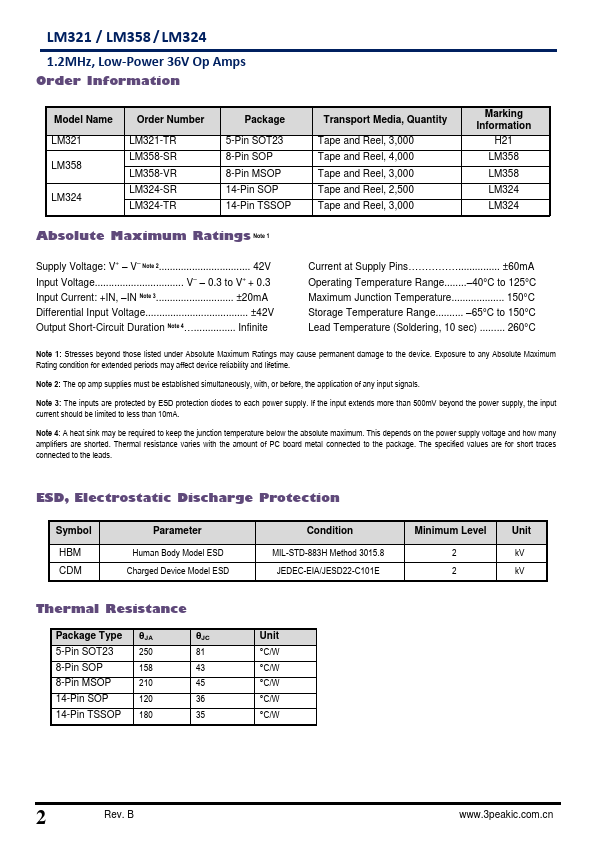

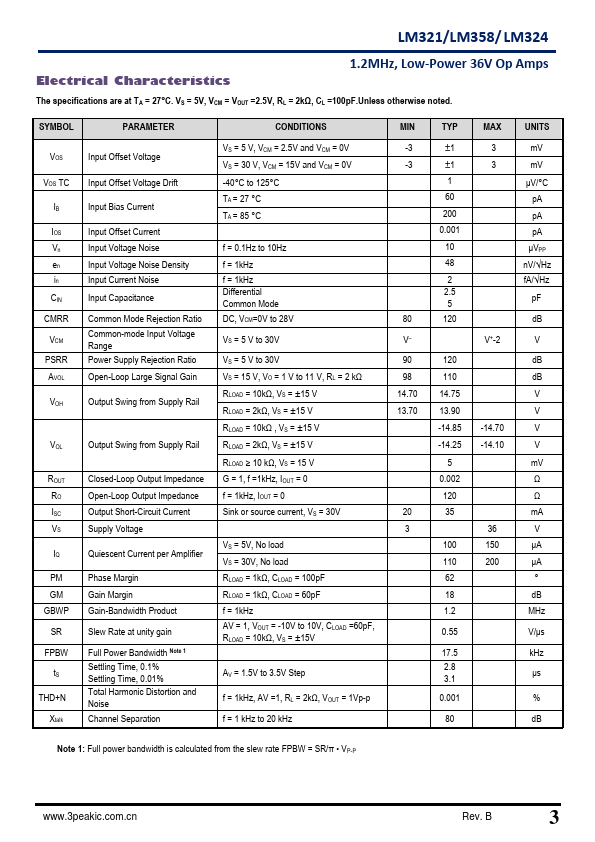

LM358 Datasheet Preview Page 2 LM358 Datasheet Preview Page 3

Datasheet Details

Part number:

LM358

Manufacturer:

3Peak

File Size:

763.33 KB

Description:

Low-power 36v op amps.
