TP1514 Datasheet Op Amps

Manufacturer: 3Peak

Overview: TP1511/TP1512/TP1514 Stable 150-kHz, 4-μA, Rail-to-Rail, Op Amps.

Download the TP1514 datasheet PDF. This datasheet also includes the TP1511 variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

TP1514 op amps by 3Peak - Datasheet Preview

Datasheet Details

Part number	TP1514
Manufacturer	3Peak
File Size	1.18 MB
Description	Op Amps
Download	TP1514 Download (PDF)

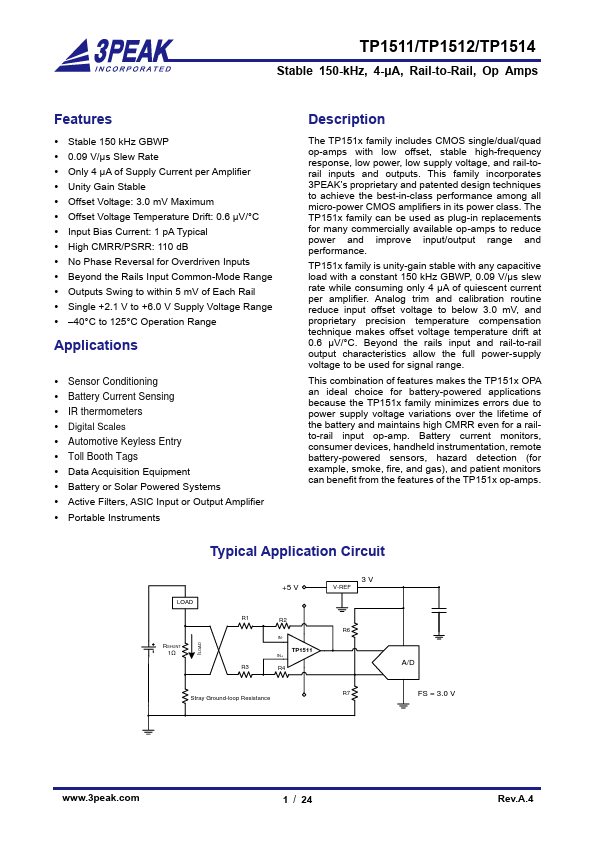

General Description

The TP151x family includes CMOS single/dual/quad op-amps with low offset, stable high-frequency response, low power, low supply voltage, and rail-torail inputs and outputs.

This family incorporates 3PEAK’s proprietary and patented design techniques to achieve the best-in-class performance among all micro-power CMOS amplifiers in its power class.

The TP151x family can be used as plug-in replacements for many commercially available op-amps to reduce power and improve input/output range and performance.

Key Features

Stable 150 kHz GBWP.
0.09 V/μs Slew Rate.
Only 4 μA of Supply Current per Amplifier.
Unity Gain Stable.
Offset Voltage: 3.0 mV Maximum.
Offset Voltage Temperature Drift: 0.6 μV/°C.
Input Bias Current: 1 pA Typical.
High CMRR/PSRR: 110 dB.
No Phase Reversal for Overdriven Inputs.
Beyond the Rails Input Common-Mode Range.
Outputs Swing to within 5 mV of Each Rail.
Single +2.1 V to +6.0 V Supply Voltage Range.
40°C to 125°C.
