TP1941 - Push-Pull Output Comparators

General Description

Fast Response Time: 68 ns Propagation Delay Ultra-Low Supply Current: 46 μA per Channel Offset Voltage: ± 3.0 mV Maximum Offset Voltage Temperature Drift: 0.3 μV/°C Input Bias Current: 6 pA Typical Internal Hysteresis Ensures Clean Switching Input Common-Mo

Key Features

  • TP1941/TP1941N/TP1942/TP1944 68ns, 1.8V, Ultra-low Power, RRI, Push-Pull Output Comparators.

📥 Download Datasheet

Datasheet Details

Part number TP1941
Manufacturer 3Peak
File Size 929.90 KB
Description Push-Pull Output Comparators
Datasheet download datasheet TP1941 Datasheet

Full PDF Text Transcription for TP1941 (Reference)

Note: Below is a high-fidelity text extraction (approx. 800 characters) for TP1941. For precise diagrams, and layout, please refer to the original PDF.

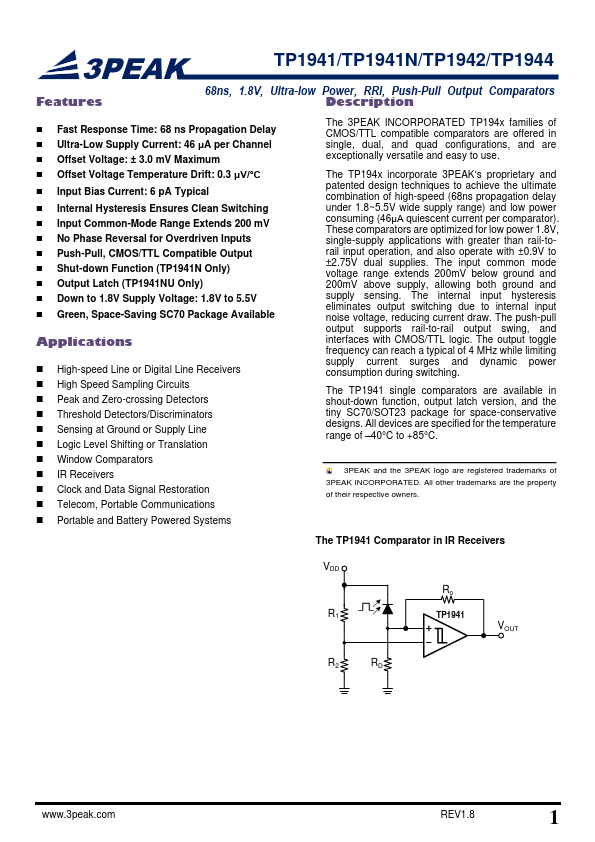

3PEAK Features TP1941/TP1941N/TP1942/TP1944 68ns, 1.8V, Ultra-low Power, RRI, Push-Pull Output Comparators Description ◼ Fast Response Time: 68 ns Propagation Delay ◼ Ult...

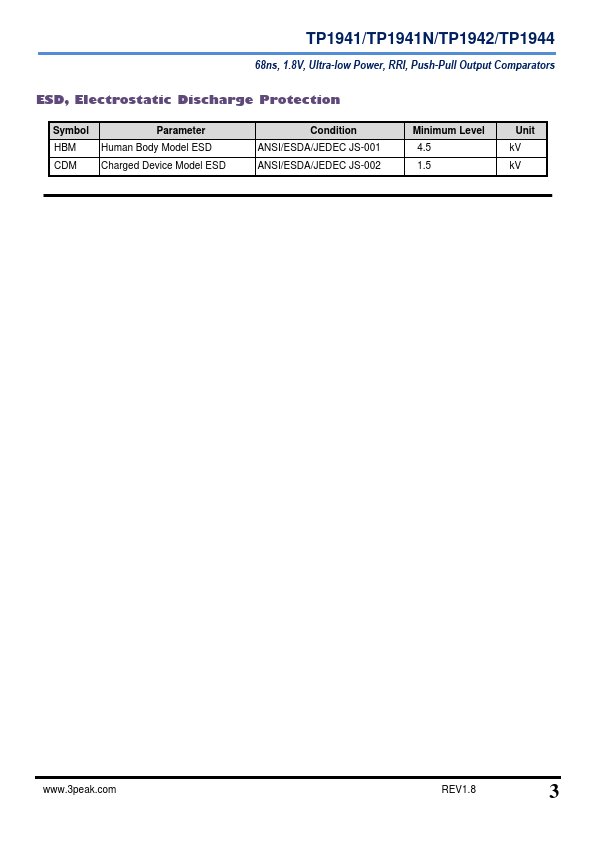

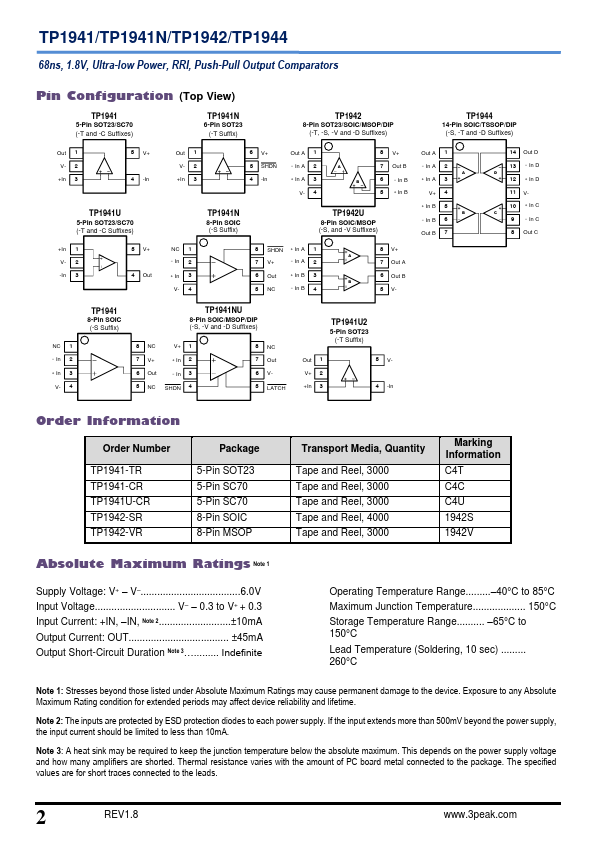

View more extracted text
rators Description ◼ Fast Response Time: 68 ns Propagation Delay ◼ Ultra-Low Supply Current: 46 μA per Channel ◼ Offset Voltage: ± 3.0 mV Maximum ◼ Offset Voltage Temperature Drift: 0.3 μV/°C ◼ Input Bias Current: 6 pA Typical ◼ Internal Hysteresis Ensures Clean Switching ◼ Input Common-Mode Range Extends 200 mV ◼ No Phase Reversal for Overdriven Inputs ◼ Push-Pull, CMOS/TTL Compatible Output ◼ Shut-down Function (TP1941N Only) ◼ Output Latch (TP1941NU Only) ◼ Down to 1.8V Supply Voltage: 1.8V to 5.
