S292-Cxxx - Pro M Miniature Circuit Breakers

This page provides the datasheet information for the S292-Cxxx, a member of the S291-C125 Pro M Miniature Circuit Breakers family.

Datasheet Summary

Description

The S2 Series of miniature circuit breakers offer a compact solution to protection requirements.

The breakers are recognized under standard UL 1077 as supplemental protective devices.

The S2 devices are current limiting, DIN rail mounted and can offer a good equivalent to fused systems.

Features

Current limiting.
Fast breaking time (2.5.
3.5 msec).
Unique bus connection system.
Wide range of accessories.
Available with variable depth handle mechanism.
Optional Z curve for SCR protection.
CE certified and marked.
DIN rail or front plated mounting.
Finger safe terminals.
Multi-function terminals.
Suitable for reverse feed.
UL 1077 and CSA 22.2.
277/480VAC and 500V.

Datasheet Details

Part number	S292-Cxxx
Manufacturer	ABB
File Size	1.37 MB
Description	Pro M Miniature Circuit Breakers
Datasheet	S292-Cxxx Datasheet

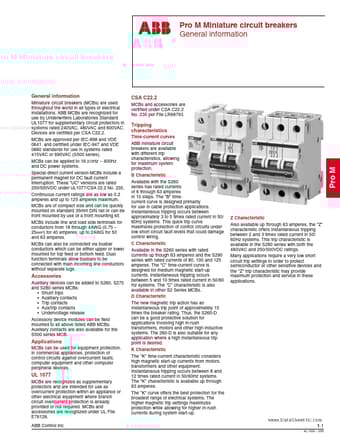

Additional preview pages of the S292-Cxxx datasheet.

📁 Similar Datasheet

S29255A - CMOS 2K / 4K Bit Serial EPROM (Seiko)

S29 - Schottky Rectifiers (Fairchild Semiconductor)

S290AJ1-LE1 - TFT LCD Module (INNOLUX)

S290AJ1-LE2 - TFT LCD Module (INNOLUX)

S2916 - Tx-Rx FEM (Smarter Micro)

S2918I - CMOS 1K-Bit Serial EPROM Easy Interface (Seiko Instruments)

S2918IF10 - CMOS 1K-Bit Serial EPROM Easy Interface (Seiko Instruments)

S2934A - CMOS 4K-Bit Serial EPROM Compatible (Seiko Instruments)

S29530A - CMOS Serial EPROM (Seiko Instruments)

S29630A - CMOS Serial EPROM (Seiko Instruments)

Full PDF Text Transcription

Click to expand full text

Pro M Miniature circuit breakers General information General information Miniature circuit breakers (MCBs) are used throughout the world in all types of electrical installations. ABB MCBs are recognized for use by Underwriters Laboratories Standard UL1077 for supplementary circuit protectors in www.DataSheet4U.com systems rated 240VAC, 480VAC and 600VAC. Devices are certified per CSA C22.2. MCBs are approved per IEC-898 and VDE 0641, and certified under IEC-947 and VDE 0660 standards for use in systems rated 415VAC or 690VAC (S500 series). MCBs can be applied to 16 2/3Hz – 400Hz and DC power systems. Special direct current version MCBs include a permanent magnet for DC fault current interruption. These "UC" versions are rated 250/500VDC under UL1077/CSA 22.2 No. 235.
