G156HAN04.0 Datasheet - AUO

G156HAN04.0 FHD Color TFT-LCD

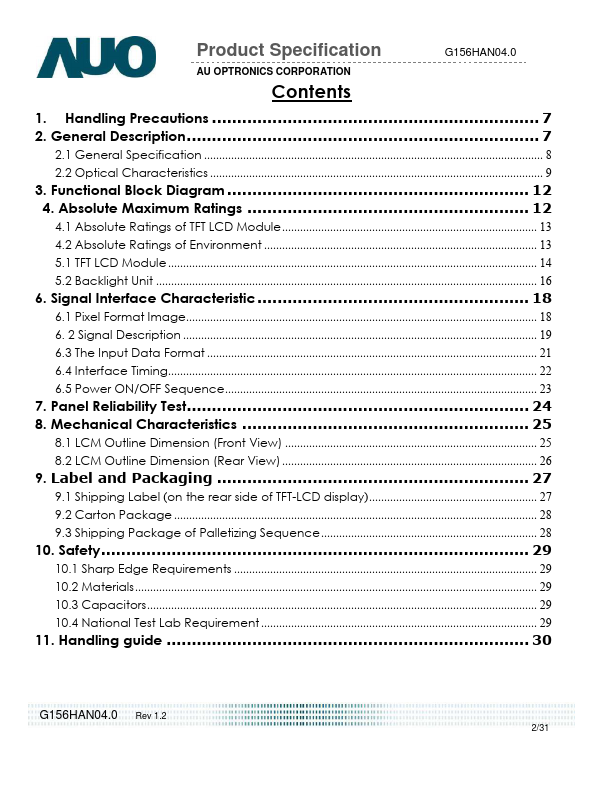

7 2.1 General Specification 8 2.2 Optical Characteristics 9 3. Functional Block Diagram 12 4. Absolute Maximum Ratings 12 4.1 Absolute Ratings of TFT LCD Module 13 4.2 Absolute Ratings of Environment 13 5.1 TFT LCD Module 14 5.2 Backlight Unit 16 6. Signal Interface Characteristic 18 6.1 Pix.

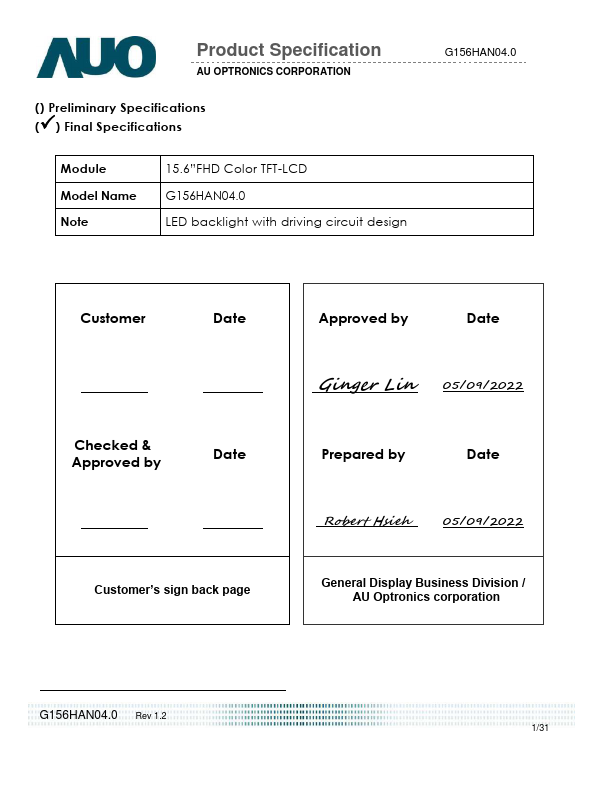

Product Specification AU OPTRONICS CORPORATION () Preliminary Specifications  ( ) Final Specifications Module Model Name Note 15.6”FHD Color TFT-LCD G156HAN04.0 LED backlight with driving circuit design G156HAN04.0 Customer Date Checked & Approved by Date Customer’s sign back page Approved by Date Ginger Lin 05/09/2022 Prepared by Date Robert Hsieh 05/09/2022 General Display Business Division / AU Optronics corporation G156HAN04.0 Rev 1.2 1/31 Product Specification AU OPTRONIC.
