G156HAN05.004 FHD Color TFT-LCD

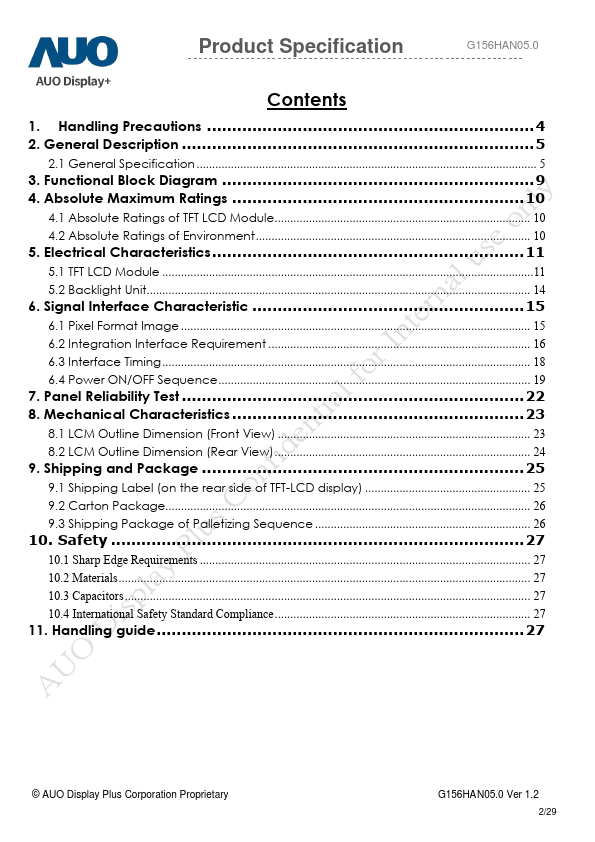

5 2.1 General Specification 5 3. Functional Block Diagram 9 4. Absolute Maximum Ratings 10 4.1 Absolute Ratings of TFT LCD Module 10 4.2 Absolute Ratings of Environment 10 5. Electrical Characteristics11 5.1 TFT LCD Module 11 5.2 Backlight Unit 14 6. Signal Interface Characteristic 15 6.1 Pixel F.

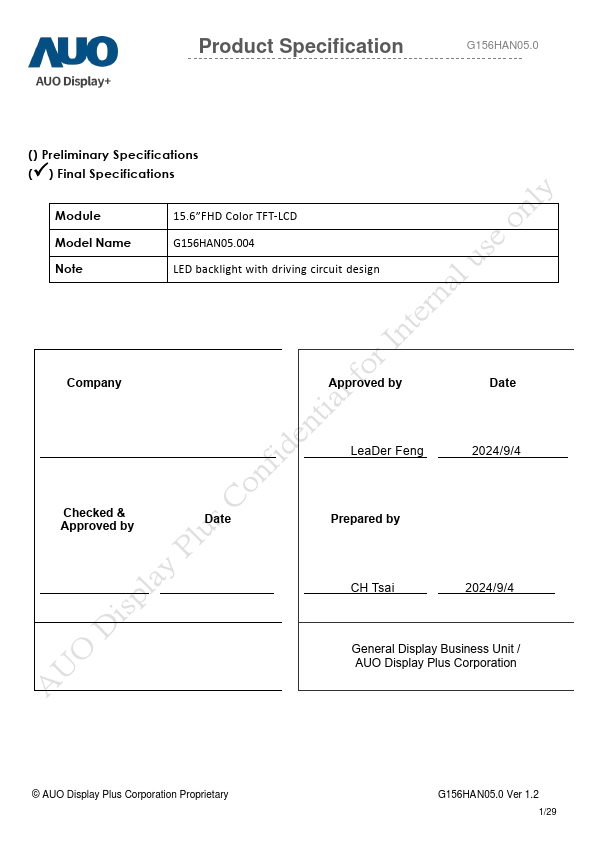

Product Specification G156HAN05.0 () Preliminary Specifications  ( ) Final Specifications Module Model Name Note 15.6”FHD Color TFT-LCD G156HAN05.004 LED backlight with driving circuit design Company Checked & Approved by Date Approved by Date LeaDer Feng 2024/9/4 Prepared by CH Tsai 2024/9/4 General Display Business Unit / AUO Display Plus Corporation © AUO Display Plus Corporation Proprietary G156HAN05.0 Ver 1.2 1/29 Product Specification G156HAN05.0 Contents 1. Handling P.
