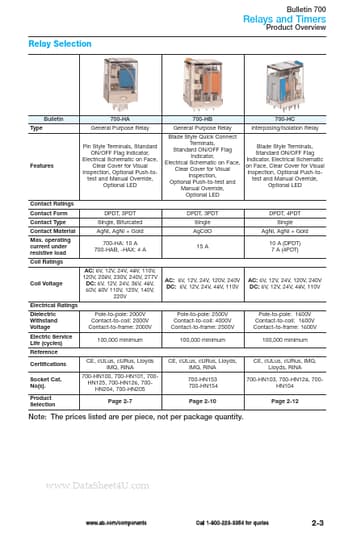

Allen-Bradley
700-HA Datasheet
General Purpose Relay
Relay Selection
Bulletin 700
Relays and Timers
Product Overview
Bulletin
Type
700-HA
General Purpose Relay
Features
Pin Style Terminals, Standard
ON/OFF Flag Indicator,
Electrical Schematic on Face,
Clear Cover for Visual
Inspection, Optional Push-to-
test and Manual Override,
Optional LED
Contact Ratings
Contact Form
DPDT, 3PDT
Contact Type
Single, Bifurcated
Contact Material
AgNi, AgNi + Gold
Max. operating
current under
resistive load
700-HA: 10 A
700-HAB, -HAX: 4 A
Coil Ratings
Coil Voltage
AC: 6V, 12V, 24V, 48V, 110V,
120V, 208V, 230V, 240V, 277V
DC: 6V, 12V, 24V, 36V, 48V,
60V, 80V 110V, 125V, 140V,
220V
Electrical Ratings
Dielectric
Withstand
Voltage
Pole-to-pole: 2000V
Contact-to-coil: 2000V
Contact-to-frame: 2000V
Electric Service
Life (cycles)
100,000 minimum
Reference
Certifications
CE, cULus, cURus, Lloyds
IMQ, RINA
Socket Cat.
No(s).
700-HN100, 700-HN101, 700-
HN125, 700-HN126, 700-
HN204, 700-HN205
Product
Selection
Page 2-7
700-HB
700-HC
General Purpose Relay
Interposing/Isolation Relay
Blade Style Quick Connect
Terminals,
Standard ON/OFF Flag
Indicator,
Electrical Schematic on Face,
Clear Cover for Visual
Inspection,
Optional Push-to-test and
Manual Override,
Optional LED
Blade Style Terminals,
Standard ON/OFF Flag
Indicator, Electrical Schematic
on Face, Clear Cover for Visual
Inspection, Optional Push-to-
test and Manual Override,
Optional LED
DPDT, 3PDT
Single
AgCdO
15 A
DPDT, 4PDT
Single
AgNi, AgNi + Gold
10 A (DPDT)
7 A (4PDT)
AC: 6V, 12V, 24V, 120V, 240V AC: 6V, 12V, 24V, 120V, 240V
DC: 6V, 12V, 24V, 48V, 110V DC: 6V, 12V, 24V, 48V, 110V
Pole-to-pole: 2500V
Contact-to-coil: 4000V
Contact-to-frame: 2500V
100,000 minimum
Pole-to-pole: 1600V
Contact-to-coil: 1600V
Contact-to-frame: 1600V
100,000 minimum
CE, cULus, cURus, Lloyds,
IMQ, RINA
700-HN153
700-HN154
CE, cULus, cURus, IMQ,
Lloyds, RINA
700-HN103, 700-HN128, 700-
HN104
Page 2-10
Page 2-12
Note: The prices listed are per piece, not per package quantity.
www.DataSheet4U.com
www.ab.com/components
Call 1-800-223-3354 for quotes
2-3
|
|
Allen-Bradley
700-HA Datasheet
General Purpose Relay
Bulletin 700
Relays and Timers
Product Overview, Continued
Relay Selection
Bulletin
Type
Features
Contact Ratings
Contact Form
Contact Type
Contact Material
Max. operating
current under
resistive load
Min. permissible
load
Coil Ratings
Coil Voltage
Permissible Coil
Voltage Variation
Electrical Ratings
Dielectric
Withstand Voltage
Electric Service
Life (cycles)
Reference
Certifications
Socket Cat. No(s).
Product Selection
700-HK
Interposing/Isolation
Relay
Optional Pilot Light,
Retainer Clip (comes
with Socket),
Low Switching
Capacity
Push-to-Test &
Manual Override
700-HL
Interposing/Isolation
Relay
Ideal for PLC
Interfaces, Built-in
Coil Surge Protection,
Fully Assembled
Relay/Sockets,
Standard LED, Relay
or Solid-state Output
Optional: Leakage
Current Suppression
Solution
700-HL 2-Pole
Interposing/Isolation
Relay
Ideal for interposing
isolation applications,
Fully Assembled
Relay/Sockets,
Standard LED, Screw
or Spring Clamo
Terminals, Snap-in
1492 Marker Option
700-HP
Interposing/Isolation
Relay
PCB “Pin Style”
Mounting,
5 mm Pin spacing
SPDT, DPDT
Single
AgNi, AgNi + Gold
SPDT
1 N.O. (SSR)
—
AgSnOAgSnO + Gold
DPDT
—
AgSnOAgSnO + Gold
8 A (DPDT), 16 A
(SPDT)
6 A (SPDT), 2 A (SSR)
10 A
5V 60 mA (Silver), 5V
10 mA (Gold)
12V 6 mA (72 mW)
Silver
8V, 2.5 mA (20 mW)
Gold
12V 10 mA (120 mW)
Silver
5V, 1 mA (50 mW)
Gold
DPDT
Single
AgNi, AgNi + Gold
8A
5V 5 mA (50 mW)
Gold,
5V 5 mA (300 mW)
Silver
AC: 6V, 12V, 24V,
120V, 240V
DC: 6V, 12V, 24V, 48V,
110V
AC: 12V, 24V, 48V,
110V, 120V, 230V,
240V
DC: 12V, 24V, 48V,
125V, 230V, 240V
AC: 24V, 48V, 110V,
120V, 230V, 240V
DC: 12V, 24V, 48V,
125V, 230V, 240V
AC: 6V, 12V, 24V,
120V, 240V
DC: 6V, 12V, 24V, 48V,
110V
80…110% of Nominal 85…110% of Nominal 85…110% of Nominal 80…110% of Nominal
Voltage at 50 Hz
Voltage at 50 Hz
Voltage at 50 Hz
Voltage at 50 Hz
80…110% of Nominal 85…110% of Nominal 85…110% of Nominal 80…110% of Nominal
Voltage at 60 Hz
Voltage at 60 Hz
Voltage at 60 Hz
Voltage at 60 Hz
73…110% of Nominal 80…110% of Nominal 80…110% of Nominal 73…150% of Nominal
Voltage at DC
Voltage at DC
Voltage at DC
Voltage at DC
Pole-to-pole: 1500V
AC
Contact-to-coil:
1500V AC
Contact-to-frame:
1500V AC
Pole-to-pole: 1000V
AC
Contact-to-coil:
4000V
Contact-to-frame:
1500V
Pole-to-pole: 1000V
AC
Contact-to-coil:
5000V
Contact-to-frame:
2500V
Pole-to-pole: 2000V
Contact-to-coil:
5000V
100,000 minimum 100,000 minimum 100,000 minimum 100,000 minimum
CE, UL, UR, CSA
700-HN121, 700-
HN221
700-HN122, 700-
HN222
Page 2-13
CE, cURus, cULus, CE, cURus, cULus, CE, cULus, cURus,
Lloyds, IMQ
Lloyds
IMQ, Lloyds, RINA
— — 700-HN123
Page 2-14
Page 2-14
Page 2-16
2-4
www.ab.com/components
Call 1-800-223-3354 for quotes
|
|
