BD3150N50100AHF - Ultra Low Profile 0404 Balun

Description

The BD3150N50100AHF is a low cost, low profile sub-miniature unbalanced to balanced transformer designed for differential inputs and output locations on modern chipsets in an easy to use surface mount package covering the MMDS and the low end of the UWB frequency range.

Features

  • 3100.
  • 5000 MHz.
  • 0.57mm Height Profile.
  • 50 Ohm to 2 x 50 Ohm.
  • Low Insertion Loss.
  • UWB & MMDS.
  • Surface Mountable.
  • Tape & Reel.
  • Non-conductive Surface.
  • RoHS Compliant.
  • Halogen Free Parameter Frequency Unbalanced Port Impedance Balanced Port Impedance Return Loss Insertion Loss.
  • Amplitude Balance Phase Balance CMRR Power Handling @85C Min. 3100 13 Typ. 50 100 15 0.7 0.8 3 26 Max 5000 0.9 1.5 7 1.0 Min. 5000 10 Power Handling @105.

📥 Download Datasheet

Datasheet preview – BD3150N50100AHF

Datasheet Details

Part number BD3150N50100AHF
Manufacturer Anaren
File Size 331.96 KB
Description Ultra Low Profile 0404 Balun
Datasheet download datasheet BD3150N50100AHF Datasheet
Additional preview pages of the BD3150N50100AHF datasheet.

📁 Similar Datasheet

  • BD315 - NPN Transistor (INCHANGE)
  • BD311 - NPN Transistor (INCHANGE)
  • BD311 - SILICON POWER TRANSISTOR (SavantIC)
  • BD312 - PNP Transistor (INCHANGE)
  • BD312 - SILICON POWER TRANSISTOR (SavantIC)
  • BD313 - NPN Transistor (INCHANGE)
  • BD314 - Silicon PNP Power Transistor (INCHANGE)
  • BD316 - PNP Transistor (INCHANGE)
  • BD317 - NPN Transistor (INCHANGE)
  • BD317 - SILICON POWER TRANSISTOR (SavantIC)
Other Datasheets by Anaren

    Full PDF Text Transcription

    Click to expand full text

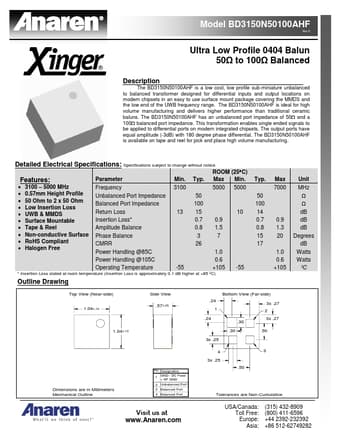

    Model BD3150N50100AHF Rev D PRELIMINARY Ultra Low Profile 0404 Balun 50Ω to 100Ω Balanced Description The BD3150N50100AHF is a low cost, low profile sub-miniature unbalanced to balanced transformer designed for differential inputs and output locations on modern chipsets in an easy to use surface mount package covering the MMDS and the low end of the UWB frequency range. The BD3150N50100AHF is ideal for high volume manufacturing and delivers higher performance than traditional ceramic baluns. The BD3150N50100AHF has an unbalanced port impedance of 50 and a 100 balanced port impedance. This transformation enables single ended signals to be applied to differential ports on modern integrated chipsets. The output ports have equal amplitude (-3dB) with 180 degree phase differential.
