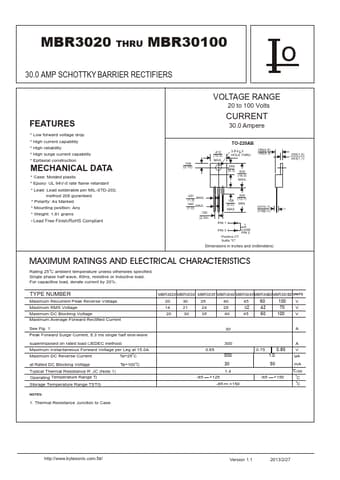

MBR3040
MBR3040 is SCHOTTKY BARRIER RECTIFIER manufactured by Byte.
- Part of the MBR3020 comparator family.
- Part of the MBR3020 comparator family.
FEATURES
- Low forward voltage drop
- High current capability
- High reliability
- High surge current capability
- Epitaxial construction
MECHANICAL DATA
- Case: Molded plastic
- Epoxy: UL 94V-0 rate flame retardant
- Lead: Lead solderable per MIL-STD-202, method 208 guranteed
- Polarity: As Marked
- Mounting position: Any
- Weight: 1.81 grams
- Lead Free Finish/Ro HS pliant
VOLTAGE RANGE
20 to 100 Volts
CURRENT
30.0 Ampere
.108 (2.75)
.412 (10.5)
MAX.
TO-220AB
3.8 φ +.2
.189(4.8)
HOLE THRU .165(4.2)
.248 (6.3) .630
(16.0)
MAX.
.051 (1.3)
MAX.
.040 (1.0)
MAX.
.100
(2.54)
.500 .158 (12.7) (4.0) MIN.
MAX.
0. 27(0.7) .016(0.4 )
PIN 1
+
PIN...
