Datasheet Details
| Part number | CTM3083 |
|---|---|
| Manufacturer | CT Micro |
| File Size | 1.19 MB |
| Description | Phototriac Optocoupler |
| Datasheet |

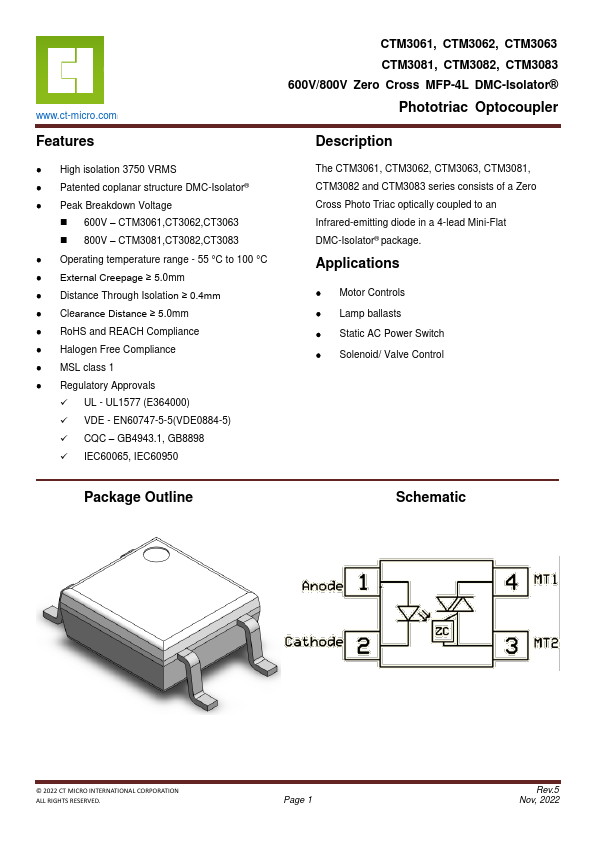

 CTM3083 Datasheet
|
|
|
General Description
The CTM3061, CTM3062, CTM3063, CTM3081, CTM3082 and CTM3083 series consists of a Zero Cross Photo Triac optically coupled to an Infrared-emitting diode in a 4-lead Mini-Flat DMC-Isolator® package.
Motor Controls Lamp ballasts Static AC Power Switch Solenoid/ ValvKey Features
- High isolation 3750 VRMS.
- Patented coplanar structure DMC-Isolator®.
- Peak Breakdown Voltage.
- 600V.
- CTM3061,CT3062,CT3063.
- 800V.
- CTM3081,CT3082,CT3083.
- Operating temperature range - 55 °C to 100 °C.
- External Creepage ≥ 5.0mm.
- Distance Through Isolation ≥ 0.4mm.
- Clearance Distance ≥ 5.0mm.
- RoHS and REACH Compliance.
- Halogen Free Compliance.
- MSL class 1.
- Regulatory Approvals.
- UL - UL1577 (E364000).
