CPC7582 Datasheet - Clare Inc.

CPC7582, Line Card Access Switch

The CPC7582 is a monolithic solid state switch in a 16 pin surface mount SOIC package. It provides the necessary functions to replace two 2-Form-C electromechanical relays on analog line cards found in Central Office, Access and PBX equipment. The device contains solid state switches for tip and rin.

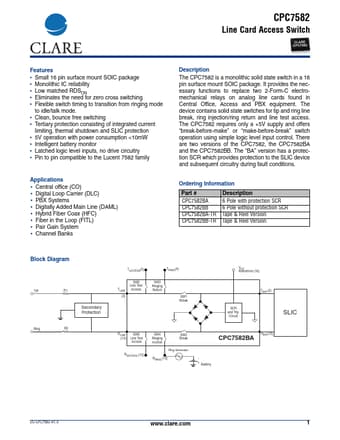

Datasheet Preview Page 1

CPC7582_ClareInc..pdf

Preview of CPC7582 PDF
CPC7582 Datasheet Preview Page 2 CPC7582 Datasheet Preview Page 3

Datasheet Details

Part number:

CPC7582

Manufacturer:

Clare Inc.

File Size:

147.05 KB

Description:

Line Card Access Switch

CPC7582 Features

* Small 16 pin surface mount SOIC package

* Monolithic IC reliability

* Low matched RDSON

* Eliminates the need for zero cross switching

* Flexible switch timing to transition from ringing mode to idle/talk mode.

* Clean, bounce free switching
