CPC1008N

4 Pin SOP OptoMOS Relay

CPC1008N Features

* Small 4 Pin SOP Package

* Low Drive Power Requirements (TTL/CMOS Compatible)

* No Moving Parts

* High Reliability

* Arc-Free With No Snubbing Circuits

* 1500VRMS Input/Output Isolation

* FCC Compatible

* No EMI/RFI Generation

CPC1008N General Description

CPC1008N is a miniature low voltage, low on resistance 1-Form-A solid state relay in a 4 pin SOP package. The relay uses optically coupled MOSFET technology to provide 1500V of input to output isolation. The efficient MOSFET switches and photovoltaic die use Clare’s patented OptoMOS® architecture. T.

CPC1008N Datasheet (188.00 KB)

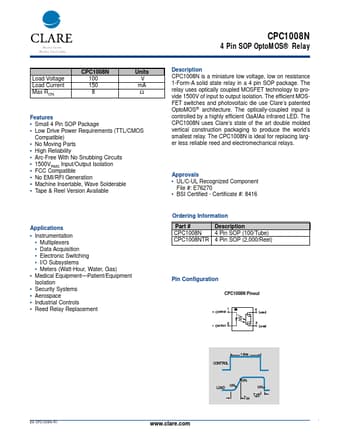

Preview of CPC1008N PDF

Datasheet Details

Part number:

CPC1008N

Manufacturer:

Clare Inc.

File Size:

188.00 KB

Description:

4 pin sop optomos relay.
