CPC1001N

Unidirectional Input / Single-Transistor Output Optocoupler

CPC1001N Features

* Small 4 Pin SOP Package

* 100mA Continuous Load Rating

* 1500Vrms Input/Output Isolation

* Machine Insertable, Wave Solderable

* Surface Mount and Tape & Reel Version Available Applications

* Loop Detect

* Ringing Detect

* Sensor Cir

CPC1001N General Description

CPC1001N is a unidirectional input optocoupler with a single transistor output. Current transfer ratios range from 100% to 800%. Approvals

* UL Recognized Component: File # E76270

* EN/IEC 60950-1 Compliant

* CSA Certified Component: Certificate # 1172007 Ordering Informatio.

CPC1001N Datasheet (99.62 KB)

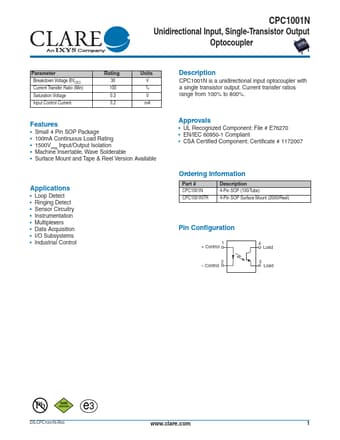

Preview of CPC1001N PDF

Datasheet Details

Part number:

CPC1001N

Manufacturer:

Clare

File Size:

99.62 KB

Description:

Unidirectional input / single-transistor output optocoupler.
CPC1001N Unidirectional Input, Single-Transistor Output Optocoupler Parameter Breakdown Voltage BVCEO Current Transfer Ratio (Min) Saturation Voltage.
