CPC1009N - 100V Normally-Open Single-Pole 4-Pin SOP OptoMOS Relay

Datasheet Summary

Description

CPC1009N is a miniature low voltage, low on-resistance, low off-state leakage, normally-open (1-Form-A) solid state relay in a 4-pin SOP package.

Features

  • Extremely Low Output Leakage: 20nA.
  • 1500Vrms Input/Output Isolation.
  • Small 4-Pin SOP Package.
  • Low Drive Power Requirements.
  • High Reliability.
  • Arc-Free With No Snubbing Circuits.
  • No EMI/RFI Generation.
  • Wave Solderable.
  • Tape & Reel Version Available.

📥 Download Datasheet

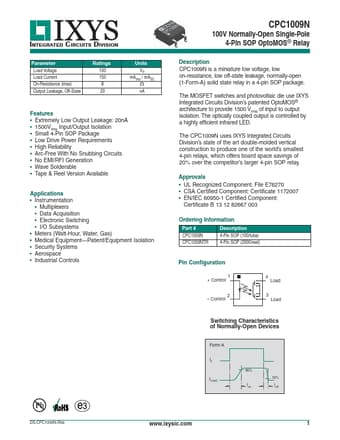

Datasheet preview – CPC1009N

Datasheet Details

Part number CPC1009N
Manufacturer IXYS
File Size 133.58 KB
Description 100V Normally-Open Single-Pole 4-Pin SOP OptoMOS Relay
Datasheet download datasheet CPC1009N Datasheet
