CPC1001NTR

Optocoupler

CPC1001NTR Features

* 100mA Continuous Load Rating

* 1500Vrms Input/Output Isolation

* Small 4-Pin SOP Package

* Tape & Reel Version Available

* Flammability Rating UL 94 V-0 Applications

* Loop Detect

* Ringing Detect

* Sensor Circuitry

* Instrume

CPC1001NTR General Description

CPC1001N is a unidirectional input optocoupler with a single transistor output. Current transfer ratios range from 100% to 800%. Approvals

* UL Recognized Component: File # E76270

* CSA Certified Component: Certificate # 1175739

* EN/IEC 60950-1 Certified Component: Certific.

CPC1001NTR Datasheet (162.36 KB)

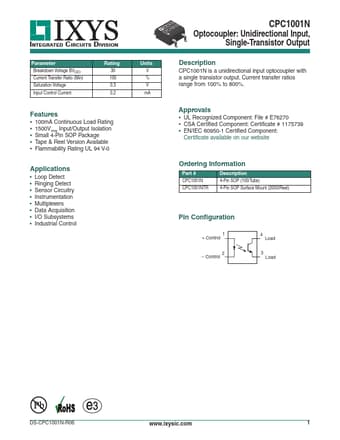

Preview of CPC1001NTR PDF

Datasheet Details

Part number:

CPC1001NTR

Manufacturer:

IXYS

File Size:

162.36 KB

Description:

Optocoupler.
INTEGRATED CIRCUITS DIVISION Parameter Breakdown Voltage BVCEO Current Transfer Ratio (Min) Saturation Voltage Input Control Current Rating 30 100 0.

📁 Related Datasheet

CPC1001N - Unidirectional Input / Single-Transistor Output Optocoupler (Clare)
CPC1001N Unidirectional Input, Single-Transistor Output Optocoupler Parameter Breakdown Voltage BVCEO Current Transfer Ratio (Min) Saturation Voltage.

CPC1001N - Optocoupler (IXYS)
INTEGRATED CIRCUITS DIVISION Parameter Breakdown Voltage BVCEO Current Transfer Ratio (Min) Saturation Voltage Input Control Current Rating 30 100 0.

CPC1002N - 60V Normally-Open Single-Pole 4-Pin SOP OptoMOS Relay (IXYS)
INTEGRATED CIRCUITS DIVISION Parameter Blocking Voltage Load Current On-Resistance (max) LED Current to operate Rating 60 700 0.55 2 Units VP mADC .

CPC1002N - 4-Pin SOP OptoMOS Relay (Clare)
CPC1002N 4-Pin SOP OptoMOS® Relay PRELIMINARY Blocking Voltage Load Current Max On-resistance LED Current to operate CPC1002N 60 700 0.55 2 Units .

CPC1004N - 100V Normally-Open Single-Pole 4-Pin SOP OptoMOS Relay (IXYS)
INTEGRATED CIRCUITS DIVISION Parameter Blocking Voltage Load Current On-Resistance (max) Rating 100 300 4 Units VP mADC  Features • Operating Tem.

CPC1006N - 60V Normally-Open Single-Pole 4-Pin SOP OptoMOS Relay (IXYS)
INTEGRATED CIRCUITS DIVISION Parameter Blocking Voltage Load Current On-Resistance (max) LED Current to operate Rating 60 75 10 0.5 Units VP mArms .

CPC1008N - 4 Pin SOP OptoMOS Relay (Clare Inc.)
CPC1008N 4 Pin SOP OptoMOS® Relay CPC1008N 100 150 8 Units V mA Ω Description CPC1008N is a miniature low voltage, low on resistance 1-Form-A solid st.

CPC1008N - Normally Open 4-Pin SOP OptoMOS Relay (IXYS)
INTEGRATED CIRCUITS DIVISION Parameter Blocking Voltage Load Current On-Resistance (max) Rating 100 150 8 Units VP mArms / mADC  Features • 1500V.
