CPC1006N

60V Normally-Open Single-Pole 4-Pin SOP OptoMOS Relay

CPC1006N Features

* Designed for EN50130-4 Compliant Security Systems

* 1500Vrms Input/Output Isolation

* Only 0.5mA of LED Current Required to Operate

* Small 4-Pin SOP Package

* High Reliability

* No EMI/RFI Generation

* Immune to Radiated EM Fields

CPC1006N General Description

The CPC1006N is a miniature single-pole, normally-open (1-Form-A) solid state relay in a 4-pin SOP package that employs optically coupled MOSFET technology to provide 1500Vrms of input to output isolation. The relay outputs are constructed with efficient MOSFET switches and photovoltaic die that use.

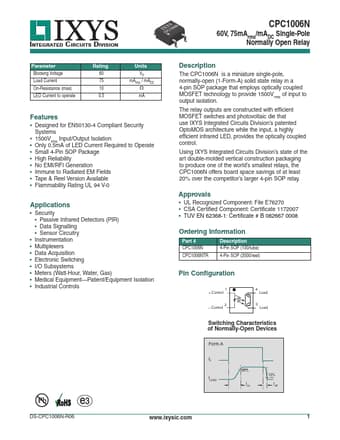

CPC1006N Datasheet (166.28 KB)

Preview of CPC1006N PDF

Datasheet Details

Part number:

CPC1006N

Manufacturer:

IXYS

File Size:

166.28 KB

Description:

60v normally-open single-pole 4-pin sop optomos relay.
INTEGRATED CIRCUITS DIVISION Parameter Blocking Voltage Load Current On-Resistance (max) LED Current to operate Rating 60 75 10 0.5 Units VP mArms .
