HAH1365 - SMT Power Inductor

Features

  • RoHS compliant. Low profile (6.5mm max. height) SMD type. Magnetically shielded, suitable for high density mounting. High energy storage and low DCR. Provided with embossed carrier tape packing. Ideal for power source circuits, DC-DC converter, DC-AC inverters inductor.

📥 Download Datasheet

Datasheet Details

Part number HAH1365
Manufacturer Delta Electronics
File Size 242.44 KB
Description SMT Power Inductor
Datasheet download datasheet HAH1365 Datasheet

📁 Similar Datasheet

  • HAH1214P3 - Ultra Low Capacitance TVS Diode (HUAAN)
  • HAH1BVW - AUTOMOTIVE CURRENT TRANSDUCER (LEM)
  • HAH0501D9 - 1-Line Bi-directional TVS Diode (HUAAN)
  • HAH0501P0 - 1-Line Bi-directional low Capacitance TVS Diode (HUAAN)
  • HAH0503S1 - 3-Line Ultra Low Capacitance TVS Diode (HUAAN)
  • HAH0504S2 - 4-Line Low Capacitance TVS Diode (HUAAN)
  • HAH0504S6 - 4-Line Ultra Low Capacitance TVS Diode (HUAAN)
  • HAH0511D9 - 1-Line Uni-directional Ultra Low Capacitance TVS Diode (HUAAN)
  • HAH0512P6 - 2-Line Ultra Low Capacitance TVS Diode (HUAAN)
  • HAH0512S2 - 2-Line Ultra Low Capacitance TVS Diode (HUAAN)
Other Datasheets by Delta Electronics
  • HAH1330 - SMT Power Inductor
  • HAH1340 - SMT Power Inductor
  • HAH1358 - SMT Power Inductor
  • HAH1378 - SMT Power Inductor
  • HAH1030 - (HAH1030 / HAH1040) SMT Power Inductor
  • HAH1040 - (HAH1030 / HAH1040) SMT Power Inductor
  • HAH65 - SMT Power Inductor
  • HAH73 - SMT Power Inductor

Full PDF Text Transcription

Click to expand full text

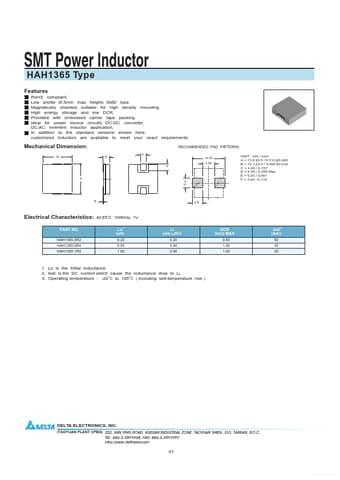

SMT Power Inductor HAH1365 Type Features RoHS compliant. Low profile (6.5mm max. height) SMD type. Magnetically shielded, suitable for high density mounting. High energy storage and low DCR. Provided with embossed carrier tape packing. Ideal for power source circuits, DC-DC converter, DC-AC inverters inductor application. In addition to the standard versions shown here, customized inductors are available to meet your exact requirements. Mechanical Dimension: B D RECOMMENDED PAD PA TTERNS C 14.50 4.90 F A 5.0 UNIT : mm / inch A = 13.0 0.5 / 0.512 0.020 B = 12.7 0.4 / 0.500 0.016 C = 4.00 / 0.157 D = 6.50 / 0.256 Max. E = 0.03 / 0.001 F = 3.00 / 0.118 E 4.8 Electrical Characteristics: PART NO. HAH1365-0R2 HAH1365-0R4 HAH1365-1R0 At 25oC: 100KHz, 1V Lo (uH) 1 Li (uH) 20% 0.20 0.
