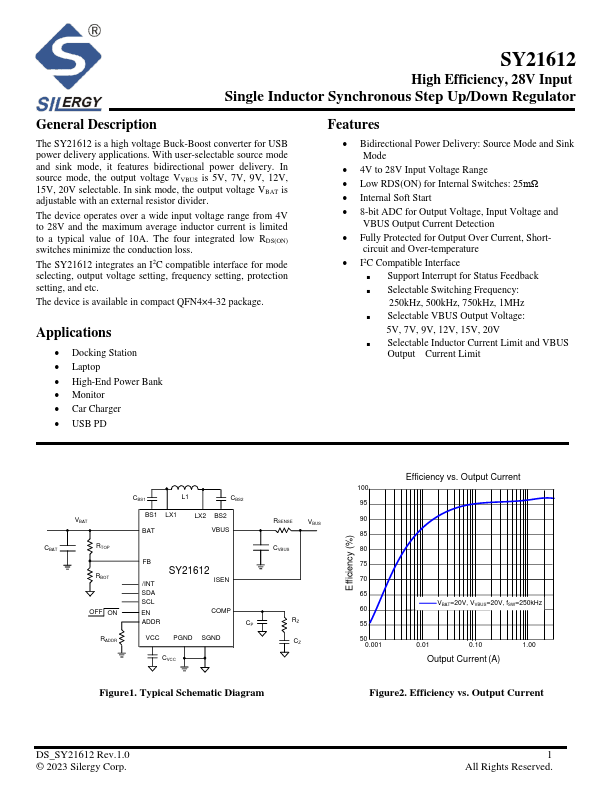

Silergy SY21612
The SY21612 is a high voltage Buck-Boost converter for USB power delivery applications. With user-selectable source mode and sink mode, it features bidirectional power delivery. The device operates over a wide input voltage range from 4V to 28V and the maximum average inductor current is limited to a typical value of 10A.| Part No. | SY21612 |
|---|---|
| Datasheet | SY21612 Download |
| Manufacturer |  Silergy |
| Description | Single Inductor Synchronous Step Up/Down Regulator |
| Buy | Stock & Price |
GENERAL DESCRIPTION
In source mode, the output voltage VVBUS is 5V, 7V, 9V, 12V, 15V, 20V selectable. In sink mode, the output voltage VBAT is adjustable with an external resistor divider. The four integrated low RDS(ON) switches minimize the conduction loss. The SY21612 integrates an I2C compatible interface for mode selecting, output voltage setting, frequency setting, protection setting, and etc. The device is available in compact QFN4×4-32 package.APPLICATIONS
● Docking Station● Laptop
● High-End Power Bank
● Monitor
● Car Charger
● USB PD
FEATURES
● Bidirectional Power Delivery: Source Mode and Sink Mode● 4V to 28V Input Voltage Range
● Low RDS(ON) for Internal Switches: 25mΩ
● Internal Soft Start
● 8-bit ADC for Output Voltage, Input Voltage and VBUS Output Current Detection
● Fully Protected for Output Over Current, Short- circuit and Over-temperature
● I2C Compatible Interface
● Support Interrupt for Status Feedback
● Selectable Switching Frequency: 250kHz, 500kHz, 750kHz, 1...
