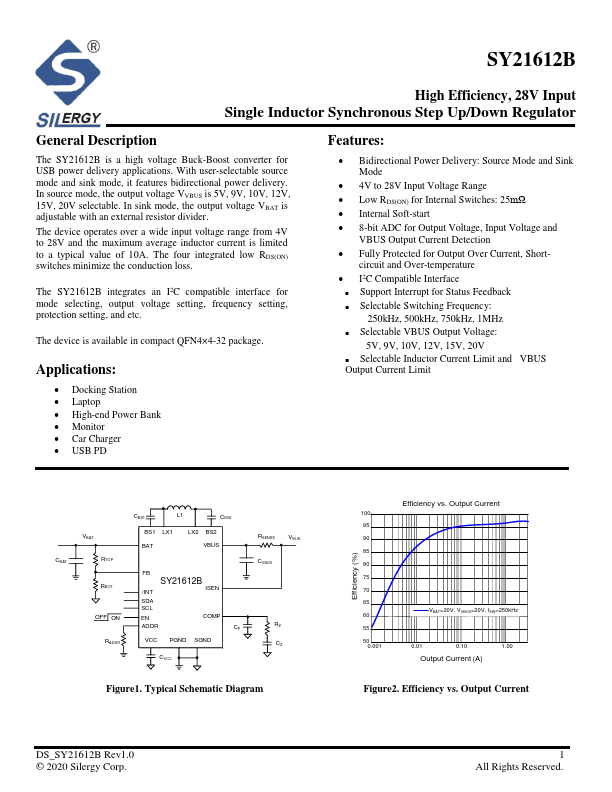

SY21612B
Description
The SY21612B is a high voltage Buck-Boost converter for USB power delivery applications.
Key Features
- Bidirectional Power Delivery: Source Mode and Sink Mode
- 4V to 28V Input Voltage Range
- Low RDS(ON) for Internal Switches: 25mΩ
- Internal Soft-start
- 8-bit ADC for Output Voltage, Input Voltage and
- Fully Protected for Output Over Current, Short
- Support Interrupt for Status Feedback
- Selectable Switching Frequency
- Selectable VBUS Output Voltage
- Selectable Inductor Current Limit and VBUS Output Current Limit
Applications
- Docking Station
