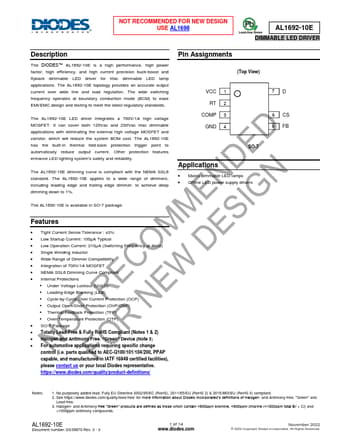

AL1692-10E Datasheet

DIMMABLE LED DRIVER

No Preview Available !

AL1692-10E
DIMMABLE LED DRIVER
Description
The AL1692-10E is a high performance, high power factor, high
efficiency, and high current precision buck-boost and flyback
dimmable LED driver for triac dimmable LED lamp applications. The
AL1692-10E topology provides an accurate output current over wide
line and load regulation. The wide switching frequency operates at
boundary conduction mode (BCM) to ease EMI/EMC design and
testing to meet the latest regulatory standards.
The AL1692-10E LED driver integrates a 700V/1A high voltage
MOSFET. It can cover both 120Vac and 230Vac triac dimmable
applications with eliminating the external high voltage MOSFET and
Varistor, which will reduce the system BOM cost. The AL1692-10E
has the built-in thermal fold-back protection trigger point to
automatically reduce output current. Other protection features
enhance LED lighting system's safety and reliability.
The AL1692-10E dimming curve is compliant with the NEMA SSL6
standard. The AL1692-10E applies to a wide range of dimmers,
including leading edge and trailing edge dimmer, to achieve deep
dimming down to 1%
Pin Assignments
(Top View)
VCC 1
RT 2
COMP 3
GND 4
SO-7
Applications
Mains Dimmable LED Lamps
Offline LED Power Supply Driver
7D
6 CS
5 FB
The AL1692-10E is available in SO-7 package.
Features
Tight Current Sense Tolerance : ±3%
Low Startup Current: 100µA Typical
Low Operation Current: 210µA (Switching Frequency at 4kHz)
Single Winding Inductor
Wide Range of Dimmer Compatibility
Integration of 700V/1A MOSFET
NEMA SSL6 Dimming Curve Compliant
Internal Protections
Under Voltage Lockout (UVLO)
Leading-Edge Blanking (LEB)
Cycle-By-Cycle Over Current Protection (OCP)
Output Open/Short Protection (OVP/OSP)
Thermal Foldback Protection (TFP)
Over-Temperature Protection (OTP)
SO-7 Package
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
AL1692-10E
Document number: DS39670 Rev. 2 - 2
1 of 14
www.diodes.com
October 2017
© Diodes Incorporated


Diodes Semiconductor Electronic Components Datasheet

AL1692-10E Datasheet

DIMMABLE LED DRIVER

No Preview Available !

AL1692-10E
Typical Application Circuits
L1
FR1
AC
Input
DB1
R1
C1
C2 C3
R2
R3
VCC 1
7D
RT 2
COMP 3
6 CS
C4
R6
GND
C6
4
5 FB
R5
D1
R4
R9
C5
D2
L2
R7
R8
+
LEDS
AL1692-10E Buck-Boost Application Circuit
Pin Descriptions
Pin Number
1
2
3
4
5
6
7
Pin Name
VCC
RT
COMP
GND
FB
CS
D
Function
Power supply voltage
Resistor set the systems maximum tON
Compensation for current control
Ground
Feedback for LED open protection voltage
Current sensing
Drain of the internal high voltage MOSFET
AL1692-10E
Document number: DS39670 Rev. 2 - 2
2 of 14
www.diodes.com
October 2017
© Diodes Incorporated
