AL1696

HIGHLY INTEGRATION OFFLINE DIMMABLE LED DRIVER

AL1696 Features

* Internal MOSFET up to 300V/3A, 400V/3A, 500V/2A, 600V/2A

* Tight Current Sense Tolerance: ±3%

* Low Startup Current: 150µA

* Low Operation Current: 120µA (Switching Frequency at 5kHz)

* Single Winding Inductor

* Wide Range of Dimmer Compatibility

* Dimming Curve Complia

AL1696 General Description

The AL1696 is a highly integrated high power factor constant current converter for mains dimmable LED driver applications. The AL1696 controls the system operating in boundary conduction mode (BCM) to ease in EMI/EMC qualification and testing to meet the latest regulatory standards. The AL1696 with .

AL1696 Datasheet (565.04 KB)

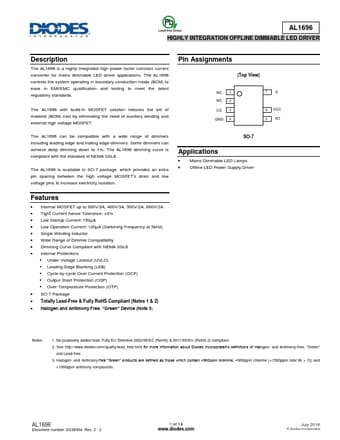

Preview of AL1696 PDF

Datasheet Details

Part number:

AL1696

Manufacturer:

DIODES ↗

File Size:

565.04 KB

Description:

Highly integration offline dimmable led driver.
